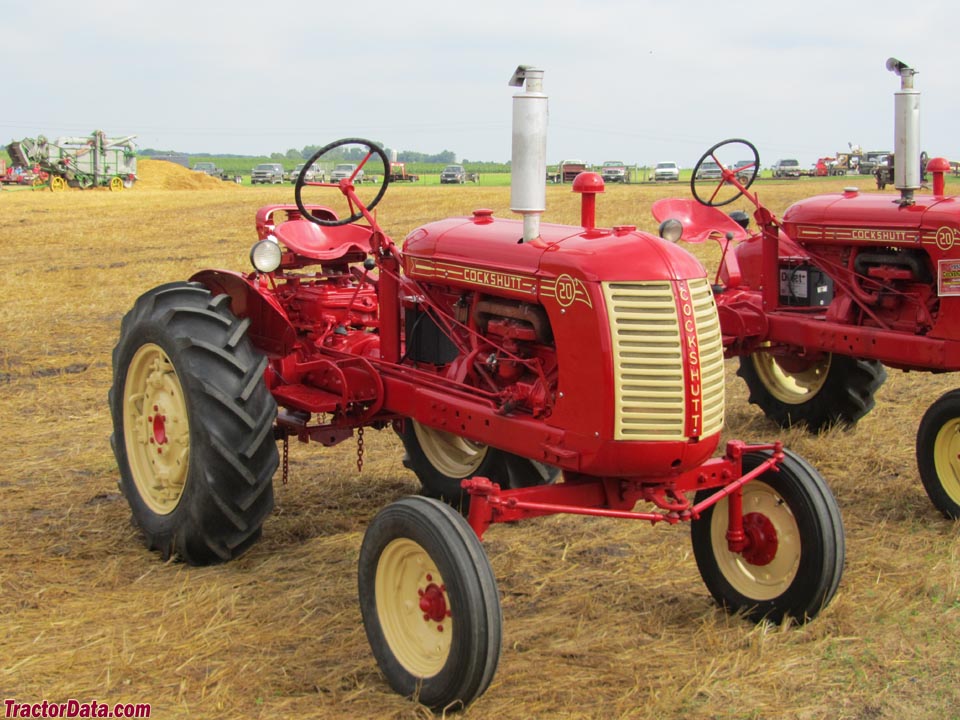

    Cockshutt 20

    Cockshutt 20 tractor photo  I&T Manual: Cockshutt 20, 30, 40, 50, CO-OP E2, E3, E4, E5
    I&T Shop Manual
    1952 - 1957
    Row-Crop tractor
    Larger:Cockshutt 30

    The Cockshutt 20 Deluxe variant was offered in the final year of production. The 20 Deluxe featured two-tone paint, padded seat, rear exhaust, and a different steering angle.


    Factory:Brantford, Ontario, Canada
    Total built:4,000
    Original price (USD):$2,300 (1953)

    Cockshutt 20 Engines:

       Continental 2.0L 4-cyl gasoline
       Continental 2.3L 4-cyl gasoline
    full engine details ...



    Dimensions & Tires:

    Weight:2820 to 4761 pounds
    Front tire:5.00-15
    Rear tire:11-24
    full dimensions and tires ...

    20 Serial Numbers:

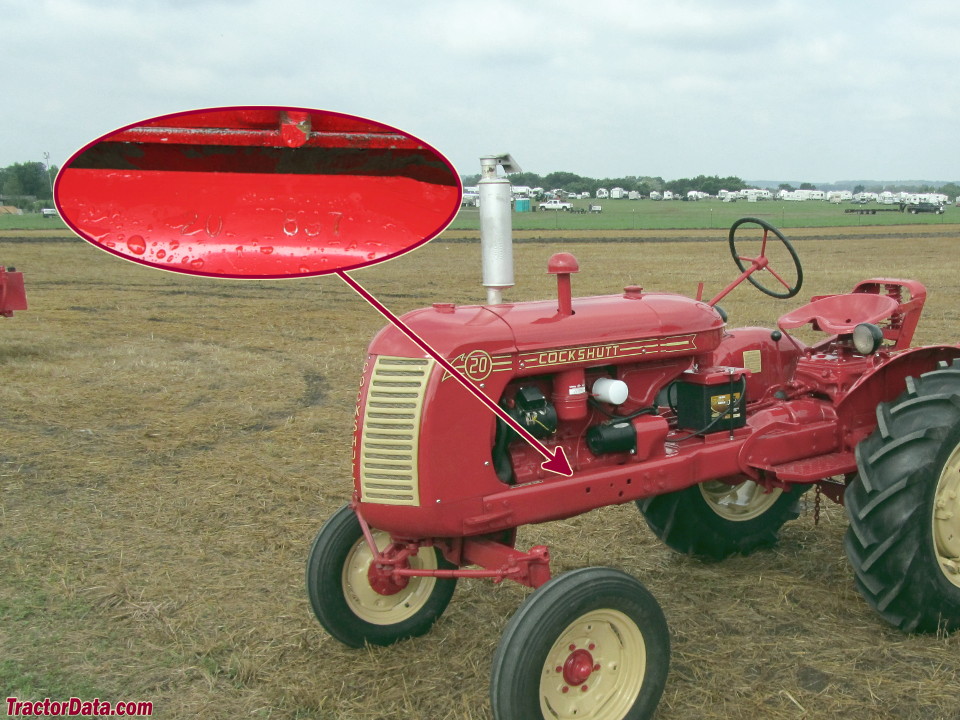

    Location:Serial number stamped into top-front of left side frame rail.
    photo of 20 serial number

    1952: 101
    1953: 1657
    1954: 2568
    1955: 10001
    1956: 20001
    1957: 30001
    1958: 40001
    Final: 40115

    how to read serial numbers...


    Cockshutt 20 Power:

    PTO (claimed):30 hp [22.4 kW]
    Drawbar (tested):25.47 hp [19.0 kW]
    Belt (tested):28.94 hp [21.6 kW]
    power test details ...


    Chassis:4x2 2WD
    Brakes:independent mechanical contracting band
    Cab:Open operator station.
