    Ford-New Holland 8730 - transmission




    No photo available
    Model:8730
    Years:1990 - 1993
    Tractor type:Farm/Agricultural tractor
    Original price:$56,500 (1993)
    more Ford-New Holland 8730 specifications...


    Transmission:

    :Ford Powershift
    Type:-unknown-
    Forward:18
    Reverse:9
    Oil capacity:100.4 qts [95.0 L]
    Comments:The Ford Ultra Command Powershift allows on-the-move shifting between gears, and shuttle shifting, without a clutch. A single lever controls the transmission
    moving it to the left shifts down, to the right shifts up. Pushing forward increases forward throttle while pulling it back moves the tractor in reverse. An inching pedal is used for precise movements.

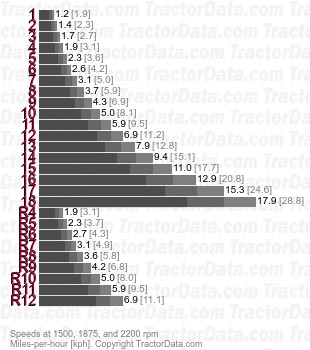

    Speeds:18.4/15-38 rear tires.

    Gear1500 rpm1875 rpm2200 rpm
    10.82mph [1.3kph]1.03mph [1.7kph]1.21mph [1.9kph]
    20.97mph [1.6kph]1.22mph [2.0kph]1.43mph [2.3kph]
    31.14mph [1.8kph]1.42mph [2.3kph]1.67mph [2.7kph]
    41.30mph [2.1kph]1.63mph [2.6kph]1.91mph [3.1kph]
    51.54mph [2.5kph]1.93mph [3.1kph]2.26mph [3.6kph]
    61.80mph [2.9kph]2.25mph [3.6kph]2.64mph [4.2kph]
    72.12mph [3.4kph]2.65mph [4.3kph]3.11mph [5.0kph]
    82.51mph [4.0kph]3.14mph [5.1kph]3.68mph [5.9kph]
    92.94mph [4.7kph]3.67mph [5.9kph]4.31mph [6.9kph]
    103.42mph [5.5kph]4.27mph [6.9kph]5.01mph [8.1kph]
    114.04mph [6.5kph]5.05mph [8.1kph]5.92mph [9.5kph]
    124.73mph [7.6kph]5.91mph [9.5kph]6.93mph [11.2kph]
    135.41mph [8.7kph]6.77mph [10.9kph]7.94mph [12.8kph]
    146.40mph [10.3kph]8.00mph [12.9kph]9.38mph [15.1kph]
    157.49mph [12.1kph]9.36mph [15.1kph]10.98mph [17.7kph]
    168.81mph [14.2kph]11.02mph [17.7kph]12.93mph [20.8kph]
    1710.42mph [16.8kph]13.02mph [20.9kph]15.28mph [24.6kph]
    1812.19mph [19.6kph]15.24mph [24.5kph]17.88mph [28.8kph]
    R41.32mph [2.1kph]1.65mph [2.7kph]
    R51.56mph [2.5kph]1.95mph [3.1kph]
    R61.82mph [2.9kph]2.28mph [3.7kph]
    R72.09mph [3.4kph]2.61mph [4.2kph]
    R82.47mph [4.0kph]3.08mph [5.0kph]
    R92.89mph [4.7kph]3.61mph [5.8kph]
    R103.40mph [5.5kph]4.25mph [6.8kph]
    R114.01mph [6.5kph]5.02mph [8.1kph]
    R124.70mph [7.6kph]5.87mph [9.4kph]



    Transmission:

    :Dual Power - constant mesh
    Type:-unknown-
    Forward:16
    Reverse:4
    Oil capacity:80 qts [75.7 L] (2WD)
    85.5 qts [80.9 L] (4WD)
    Comments:The Dual Power transmission provides a 'Powerdrive' low range to the basic constant mesh transmission. A foot switch next to the clutch is used to engage and disengage the mode, and may be switched while the tractor is in motion. A "rabbit" or "turtle" display light on the instrument panel indicates which mode the transmission is selected.

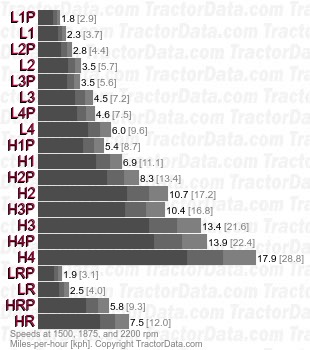

    Speeds:18.4/15-38 rear tires.

    Gear1500 rpm1875 rpm2200 rpm
    L1P1.22mph [2.0kph]1.52mph [2.4kph]1.79mph [2.9kph]
    L11.57mph [2.5kph]1.96mph [3.2kph]2.30mph [3.7kph]
    L2P1.88mph [3.0kph]2.35mph [3.8kph]2.76mph [4.4kph]
    L22.42mph [3.9kph]3.03mph [4.9kph]3.55mph [5.7kph]
    L3P2.37mph [3.8kph]2.96mph [4.8kph]3.47mph [5.6kph]
    L33.05mph [4.9kph]3.81mph [6.1kph]4.47mph [7.2kph]
    L4P3.16mph [5.1kph]3.95mph [6.4kph]4.64mph [7.5kph]
    L44.07mph [6.5kph]5.08mph [8.2kph]5.96mph [9.6kph]
    H1P3.66mph [5.9kph]4.58mph [7.4kph]5.38mph [8.7kph]
    H14.71mph [7.6kph]5.89mph [9.5kph]6.91mph [11.1kph]
    H2P5.66mph [9.1kph]7.08mph [11.4kph]8.30mph [13.4kph]
    H27.28mph [11.7kph]9.10mph [14.6kph]10.68mph [17.2kph]
    H3P7.13mph [11.5kph]8.91mph [14.3kph]10.45mph [16.8kph]
    H39.16mph [14.7kph]11.45mph [18.4kph]13.44mph [21.6kph]
    H4P9.51mph [15.3kph]11.89mph [19.1kph]13.95mph [22.4kph]
    H412.23mph [19.7kph]15.28mph [24.6kph]17.93mph [28.8kph]
    LRP1.31mph [2.1kph]1.64mph [2.6kph]1.93mph [3.1kph]
    LR1.69mph [2.7kph]2.11mph [3.4kph]2.48mph [4.0kph]
    HRP3.95mph [6.4kph]4.94mph [7.9kph]5.80mph [9.3kph]
    HR5.08mph [8.2kph]6.35mph [10.2kph]7.45mph [12.0kph]



    Transmission:

    :Constant mesh
    Type:-unknown-
    Forward:8
    Reverse:2
    Oil capacity:72.8 qts [68.9 L] (2WD)
    87.3 qts [82.6 L] (4WD)
    Comments:Tranmission is operated with two levers and the clutch pedal. Left lever selects high, low, or the optional creeper range. Right lever selects one of four forward gears, or reverse. Tractor must be stopped to make gear or range changes.

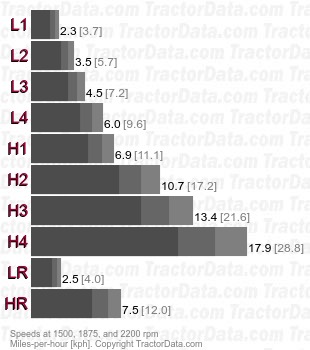

    Speeds:18.4/15-38 rear tires.

    Gear1500 rpm1875 rpm2200 rpm
    L11.57mph [2.5kph]1.96mph [3.2kph]2.30mph [3.7kph]
    L22.42mph [3.9kph]3.03mph [4.9kph]3.55mph [5.7kph]
    L33.05mph [4.9kph]3.81mph [6.1kph]4.47mph [7.2kph]
    L44.07mph [6.5kph]5.08mph [8.2kph]5.96mph [9.6kph]
    H14.71mph [7.6kph]5.89mph [9.5kph]6.91mph [11.1kph]
    H27.28mph [11.7kph]9.10mph [14.6kph]10.68mph [17.2kph]
    H39.16mph [14.7kph]11.45mph [18.4kph]13.44mph [21.6kph]
    H412.23mph [19.7kph]15.28mph [24.6kph]17.93mph [28.8kph]
    LR1.69mph [2.7kph]2.11mph [3.4kph]2.48mph [4.0kph]
    HR5.08mph [8.2kph]6.35mph [10.2kph]7.45mph [12.0kph]
