New Holland 7810S Transmission


New Holland 7810S tractor photo
1994 - 2003
10S Series
Utility tractor
7810S
Series:7610S7810S8010

Note: the New Holland model 7810S is the same as the Ford 7810S. The following data is from the 7810S listing.
Transmissions overview
8-speed unsynchronized gear
16-speed two-speed power shift
Transmission
Type:unsynchronized gear
Gears:8 forward and 2 reverse
Four gears, plus reverse, in two ranges. Tractor must be stopped, and clutch used, before shifting gear or range.
Speeds

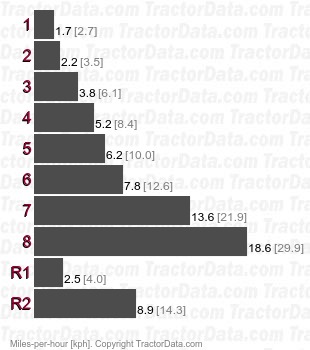

7810S  unsynchronized gear speeds
Transmission
Transmission:Dual Power
Type:two-speed power shift
Gears:16 forward and 4 reverse
