    New Holland 5640 - engine

    No photo available
    1996 - 1998   PowerStar 40 Series
    Utility tractor
    Previous model:Ford 5640
    Larger:New Holland 6640
    more New Holland 5640 specifications...





    Note: the New Holland model 5640 is the same as the Ford 5640. The following data is from the 5640 listing.


    Engine Detail:

     Ford Genesis
     diesel
     4-cylinder 8-valve
     liquid-cooled
     268 ci [4.4 L]
    Bore/Stroke:4.40x4.40 inches [112 x 112 mm]
    Air cleaner:dual paper elements
    Compression:17.5:1
    Rated RPMs:2200
    Idle RPMs:725-2375
    Firing order:1-3-4-2
    Starter volts:12
    Oil capacity:12.1 qts [11.5 L]
    Coolant capacity:15.3 qts [14.5 L]
     16.9 qts [16.0 L] (cab)
    Intake valve clearance:0.016 inches [0.406 mm] (cold)
    Exhaust valve clearance:0.019 inches [0.483 mm] (cold)

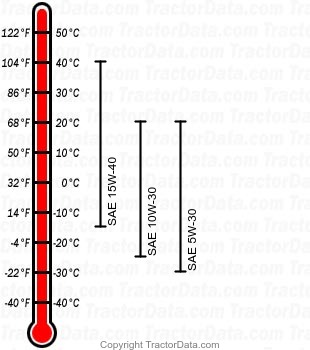

    5640 diesel engine oil chart
