New Holland 5610 Transmission
|
|
Note: the New Holland model 5610 is the same as the Ford 5610. The following data is from the 5610 listing. |
| Transmissions overview | |
| 8-speed | |
| 8-speed synchromesh | |
| 16-speed partial power shift | |
| 16-speed synchromesh partial power shift |
| Transmission | |
| Transmission: | Dual-range |
| Gears: | 8 forward and 2 reverse |
| Clutch: | 305mm dry disc |

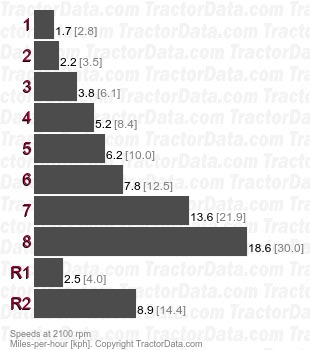

| Speeds | |
| With 18.4x34 rear tires. | |
|
| Transmission | |
| Transmission: | Dual-range |
| Type: | synchromesh |
| Gears: | 8 forward and 4 reverse |
| Speeds | |
| With 18.4x34 rear tires. | |
|
| Transmission | |
| Transmission: | Dual Power |
| Type: | partial power shift |
| Gears: | 16 forward and 4 reverse |
| The Dual Power adds a shift-on-the-move to an under-speed on the basic 8/2 gear transmission. | |

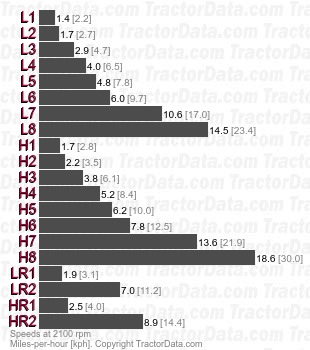

| Speeds | |
| With 18.4x34 rear tires. | |
|
| Transmission | |
| Transmission: | Dual Power |
| Type: | synchromesh partial power shift |
| Gears: | 16 forward and 8 reverse |
| A shift-on-the-move under-speed added to the 8/4 synchromesh transmission. | |

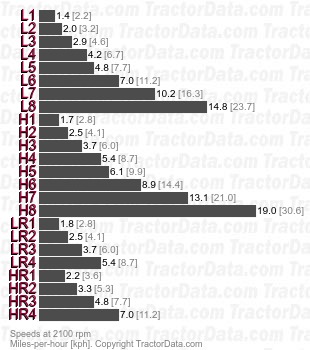

| Speeds | |
| With 18.4x34 rear tires. | |
|
