New Holland 4835 Transmission

New Holland 4835 tractor photo
1996 - 1999
35 Series
Utility tractor
Transmissions overview
12-speed partially synchronized
12-speed partiallly synchronized with sync shuttle
24-speed partial power shift
Type:partially synchronized
Gears:12 forward and 4 reverse
Four gears in three ranges, plus reverse. Gear shifts are synchronized.

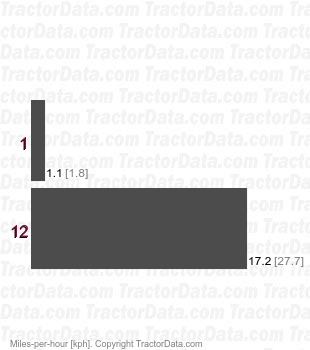

4835 Synchro partially synchronized speeds
Transmission:Synchro Command
Type:partiallly synchronized with sync shuttle
Gears:12 forward and reverse
Four gears in three ranges with left-hand reverser. Gear and shuttle shifts are synchronized.
Transmission:Dual Command
Type:partial power shift
Gears:24 forward and 12 reverse
Four gears in three ranges with two-speed power shift and left-hand reverser. The Dual Command provides push-button shifting to lower gear at each speed.
