Tractors > Ford-New Holland > 3930

Ford-New Holland 3930 - tests

Ford-New Holland 3930 tractor photo
1990 - 2002
Utility tractor
Previous model:Ford-New Holland 3910
more Ford-New Holland 3930 specifications...





Note: the Ford-New Holland model 3930 is the same as the Ford 3930. The following data is from the 3930 listing.


OCED Tractor Test 1644:

Nebraska summary:82

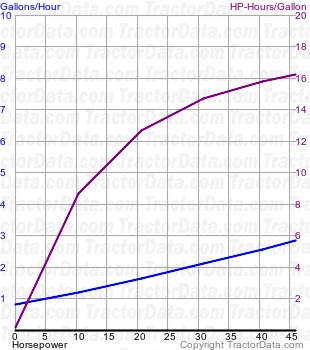

3930 fuel use from test 82
Test Date:April 8 - 25, 1991
Type:3.3L diesel 8x2 speed 4WD
PTO power (rated engine speed):45.85 hp [34.2 kW]
PTO fuel use (engine speed):2.8 gal/hour [10.6 l/hour]
PTO power (rated PTO speed):43.65 hp [32.5 kW]
PTO fuel use (PTO speed):2.6 gal/hour [9.8 l/hour]
Drawbar power (max):38.18 hp [28.5 kW]
Drawbar fuel use (max):2.9 gal/hour [11.0 l/hour]
Drawbar pull (max):4,807 lbs [2180 kg]
Max pull gear:2L
Test report:PDF file


OCED Tractor Test 1341:

Nebraska summary:103
Type:Diesel 8x8 speed
PTO power (max):44.3 hp [33.0 kW]
PTO fuel use (max):2.9 gal/hour [11.0 l/hour]
Drawbar power (max):35.1 hp [26.2 kW]


OCED Tractor Test 1701:

Nebraska summary:189

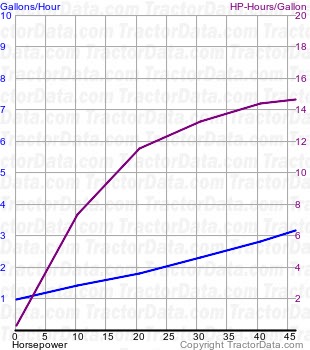

3930 fuel use from test 189
Test Date:October 17 - 27, 1995
Type:3.1L diesel 8x2 speed 4WD
PTO power (rated engine speed):45.58 hp [34.0 kW]
PTO fuel use (engine speed):3.0 gal/hour [11.4 l/hour]
PTO power (rated PTO speed):41.22 hp [30.7 kW]
PTO fuel use (PTO speed):2.6 gal/hour [9.8 l/hour]
Drawbar power (max):37.33 hp [27.8 kW]
Drawbar pull (max):5,026 lbs [2279 kg]
Max pull gear:2L
Test report:PDF file


OCED Tractor Test 1702:

Nebraska summary:190

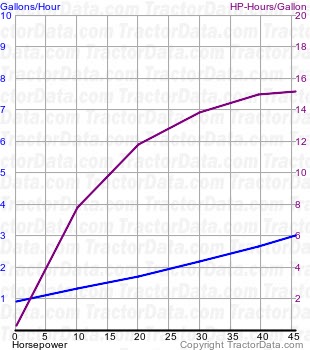

3930 fuel use from test 190
Test Date:October 2 - 27, 1995
Type:3.1L diesel 8x8 speed 4WD
PTO power (rated engine speed):46.23 hp [34.5 kW]
PTO fuel use (engine speed):3.2 gal/hour [12.1 l/hour]
PTO power (rated PTO speed):41.81 hp [31.2 kW]
PTO fuel use (PTO speed):2.7 gal/hour [10.2 l/hour]
Drawbar power (max):37.19 hp [27.7 kW]
Drawbar fuel use (max):3.1 gal/hour [11.7 l/hour]
Drawbar pull (max):4,480 lbs [2032 kg]
Max pull gear:3L
Test report:PDF file


OCED Tractor Test 1702S:

Nebraska summary:190
Test Date:1998
Type:3.1L turbo-diesel 8x8 speed 4WD
PTO power (rated engine speed):52.54 hp [39.2 kW]
