Ford-New Holland 2810 Transmission

No photo available
1983 - 1990
Utility tractor

Note: the Ford-New Holland model 2810 is the same as the Ford 2810. The following data is from the 2810 listing.
Transmissions overview
6-speed mechanical shuttle
Transmission:Dual Range
Gears:8 forward and 2 reverse
Clutch:330mm dry disc
Oil capacity:12.7 qts
12.0 L
With 13.6x28 rear tires.
2810 Dual Range  speeds
Type:mechanical shuttle
Gears:6 forward and 4 reverse

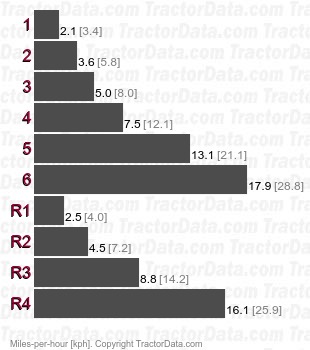

2810  mechanical shuttle speeds
