New Holland 2120
| | 1996 - 2000 |
| Twenty Compact Series | | Compact Utility tractor | | Shibaura built |
|
Note: the New Holland model 2120 is the same as the Ford 2120. The following data is from the 2120 listing. |
| Production |
| Distributor: | New Holland
|
| Manufacturer: | Shibaura
|
| Type: | Compact Utility tractor
|
| Factory: | Japan
|
| Original price: | $21,200
|
| New Holland 2120 Power |
| Engine (gross): | 42.6 hp
31.8 kW
|
| Engine (net): | 40 hp
29.8 kW
|
| PTO (claimed): | 34.5 hp
25.7 kW
|
| Mechanical |
| Chassis: | 4x2 2WD
|
| | 4x4 MFWD 4WD
|
| Steering: | power
|
| Brakes: | wet disc
|
| Cab: | Two-post ROPS. Optional FOPS canopy.
|
| Transmissions: | 12-speed gear
|
| | 12-speed power shuttle
|
 Transmission details ... |
| Hydraulics |
| Type: | open center
|
| Pump flow: | 9.3 gpm
35.2 lpm
|
| Total flow: | 12.1 gpm
45.8 lpm
|
| Steering flow: | 2.8 gpm
10.6 lpm
|
| Tractor hitch |
| Rear Type: | I
|
| Control: | draft control
|
| Rear lift (at 24"/610mm): | 2574 lbs
1167 kg
|
| Power Take-off (PTO) |
| Rear PTO: | independent
|
| Rear RPM: | 540
|
| 2120 Serial Numbers |
| Location: | Transmission housing, left side
|
| 1988: | UV21003
|
| 1989: | UV22274
|
| 1990: | UV23599
|
| 1991: | UV24295
|
| 1992: | UV25141
|
| 1993: | UV25891
|
| 1994: | UV26738
|
| 1995: | UV27935
|
| 1996: | UV28911
|
| 1997: | UV29898
|
| 1998: | UV30679
|
| 1999: | UV31770
|
how to read serial numbers...
|
| Electrical |
| Ground: | negative
|
| Battery volts: | 12
|
| Page information |
| Last update: | October 19, 2021
|
| Copyright: | Copyright 2021 TractorData LLC
|
| Contact: | Peter@TractorData.com
|
©2000-2021 - TractorData.com®. Notice: Every attempt is made to ensure the data listed
is accurate. However, differences between sources, incomplete listings,
errors, and data entry mistakes do occur.
Consult official
literature from the manufacturer before attempting any service or repair.
Engine details ...

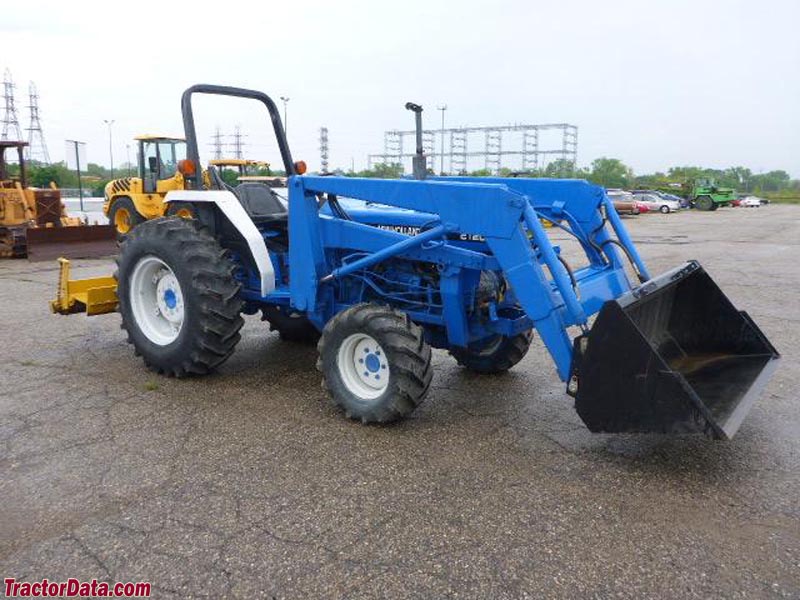

New Holland 2120 photos...
