Ford 1510 Transmission


Ford 1510 tractor photo
1983 - 1986
Ten Compact Series
Compact Utility tractor
Shibaura built
Series map:
1310
1510
1710
19.0hp
22.0hp
26.0hp
Transmissions overview
12-speed unsynchronized gear
12-speed partially synchronized
Transmission
Typeunsynchronized gear
Gears12 forward and 4 reverse
Clutch216mm dry disc
Oil capacity18 qts*On two-wheel drive tractors built in January and February of 1983.
17.0 L
 27.5 qts
26.0 L
Three gears, plus reverse, in four ranges.
Speeds
With 9.5-24 rear tires.
1510  unsynchronized gear speeds
Transmission
Typepartially synchronized
Gears12 forward and 4 reverse

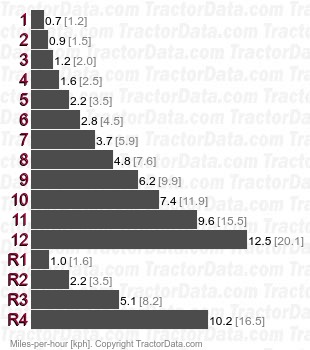

Speeds
1510  partially synchronized speeds
