| | 1983 - 1986 |
| Ten Compact Series | | Compact Utility tractor | | Shibaura built |
|
Series map:
1210
1310
1510
16.0hp
19.0hp
22.0hp
| Transmissions overview |
| 12-speed unsynchronized gear |
| 12-speed partially synchronized |
| Transmission |
| Type | unsynchronized gear
|
| Gears | 12 forward and 4 reverse
|
| Clutch | 216mm dry disc
|
| Oil capacity | 18 qts
17.0 L
|
| Three gears, plus reverse, in four ranges. |

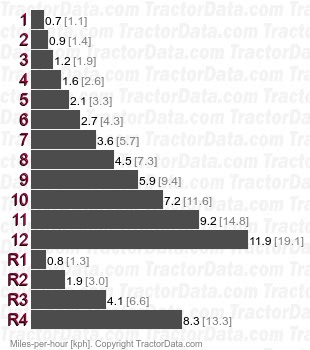

| Speeds |
| With 8.3-24 rear tires. |
|
| Transmission |
| Type | partially synchronized
|
| Gears | 12 forward and 4 reverse
|

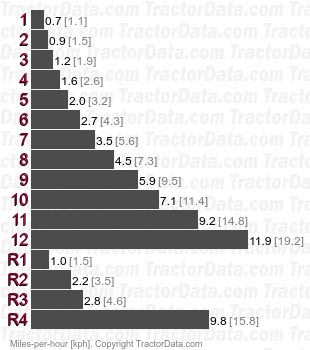

| Speeds |
|
