| | Production: |
| Factory: | -unknown- |
| Manufacturer: | White
|
| Total built: | -unknown- |
| | |
| White-Hercules 6-cyl diesel |
| full engine details ... | | | Capacity: |
| Fuel: | 74 gal [280.1 L]
|
| | |
| Rear Type: | III
|
| Rear lift (at 24"/610mm): | 6,400 lbs [2903 kg]
|
| | |
| Rear PTO: | independent
|
| Rear RPMs: | 1000
|
| | |
| Wheelbase: | 113 inches [287 cm]
|
| Weight: | 16,650 lbs [7552 kg]
|
| Front tire: | 11.00-16
|
| Rear tire: | 18.4-38
|
| full dimensions and tires ... | | | |

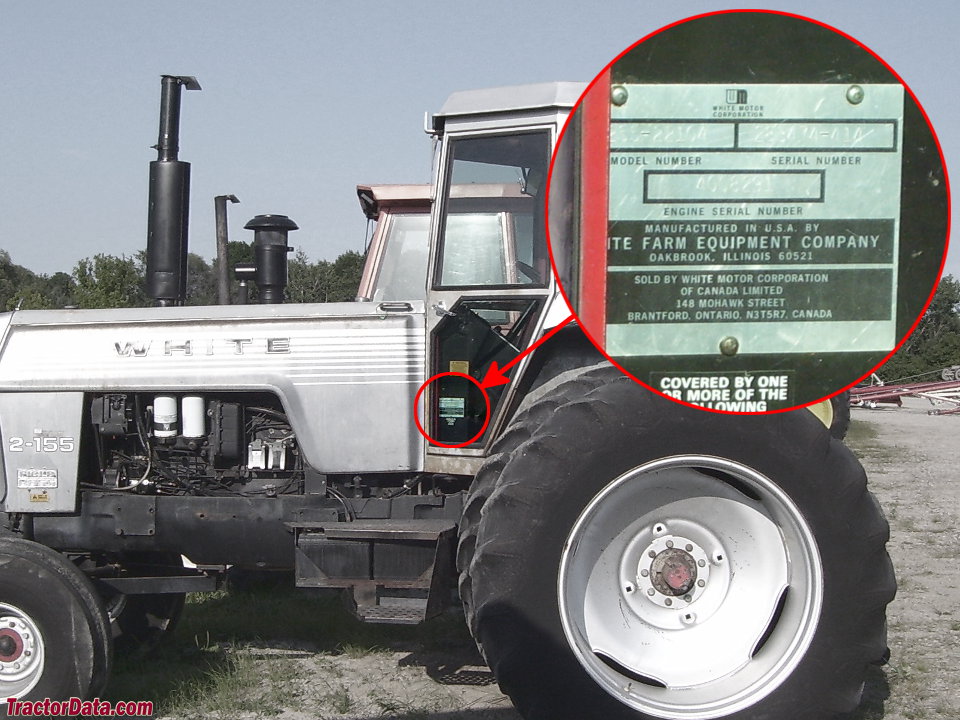

| Location: | Above step on left side of main frame
|
1976: 272595
1977: 276055
1978: 282280
1979: 287812
1980: 296160
1981: 297134
1982: 300259
1983: 300928
1984: 302791
1985:
1986: 400718
1987: 407889
1988: 415671
|
|
| | Power: |
| Engine: | -unknown- |
| PTO (claimed): | 155 hp [115.6 kW]
|
| Drawbar (tested): | 131.33 hp [97.9 kW]
|
| PTO (tested): | 157.73 hp [117.6 kW]
|
| power test details ... | | | Mechanical: |
| Chassis: | 4x2 2WD
4x4 MFWD 4WD optional
|
| Steering: | hydrostatic power
|
| Brakes: | independent hydraulic wet disc
|
| Cab: | Cab standard
|
|
|
| | Hydraulics: |
| Type: | closed
|
| Capacity: | -unknown- |
| Total flow: | -unknown- |
| Valve flow: | 21 gpm [79.5 lpm]
|
| Steering flow: | -unknown- |
| Pressure: | -unknown- |
| Valves: | 2
|
| | Electrical: |
| Ground: | -unknown- |
| | Battery: |
| Number: | -unknown- |
| Cold-cranking amps: | -unknown- |
| Volts: | -unknown- |
| Amp-hours: | -unknown- |
