White 160
| | 1987 - 1989 |
| 100 Series | | Row-Crop tractor |
|
| Production |
| Manufacturer: | White
|
| Type: | Row-Crop tractor
|
| Factory: | Coldwater, Ohio, USA
|
| Original price: | $55,000 (1989 )
|
| White 160 Power |
| PTO (claimed): | 160 hp
119.3 kW
|
| Drawbar (tested): | 140.37 hp
104.7 kW
|
| PTO (tested): | 162.47 hp
121.2 kW
|
| power test details ... |
| Mechanical |
| Chassis: | 4x2 2WD
|
| | 4x4 MFWD 4WD
|
| Final drives: | planetary
|
| Differential lock: | hydraulic rear
|
| Steering: | power
|
| Brakes: | independent hydraulic wet disc
|
| Cab: | Cab standard with air-conditioning.
|
| Transmission: | 18-speed partial powershift
|
 Transmission details ... |
| Capacity |
| Fuel: | 74 gal
280.1 L
|
| Hydraulic system: | 23 gal
87.1 L
|
| Hydraulics |
| Type: | closed center pressure compensated
|
| Capacity: | 23 gal
87.1 L
|
| Pressure: | 2250 psi
155.1 bar
|
| Valves: | 2 or 3
|
| Pump flow: | 22 gpm
83.3 lpm
|
| Tractor hitch |
| Rear Type: | III/II
|
| Control: | position and draft control
|
| Rear lift: | 7035 lbs
3191 kg
|
| Power Take-off (PTO) |
| Rear PTO: | independent
|
| Clutch: | hydraulic wet disc
|
| Rear RPM: | 1000
|
| Electrical |
| Ground: | negative
|
| Charging system: | alternator
|
| Charging amps: | 62
|
| Batteries: | 2
|
| Battery volts: | 12
|
| Page information |
| Last update: | May 10, 2021
|
| Copyright: | Copyright 2021 TractorData LLC
|
| Contact: | Peter@TractorData.com
|
©2000-2021 - TractorData.com®. Notice: Every attempt is made to ensure the data listed
is accurate. However, differences between sources, incomplete listings,
errors, and data entry mistakes do occur.
Consult official
literature from the manufacturer before attempting any service or repair.
Engine details ...

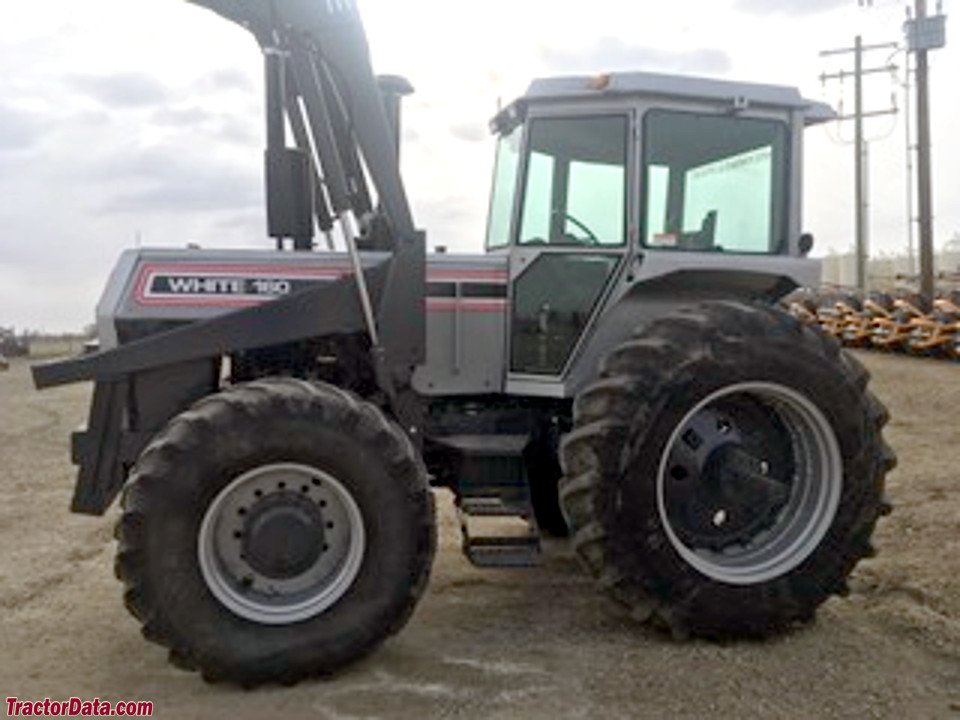

White 160 photos...
