Tractors > White > Field Boss 31

White Field Boss 31

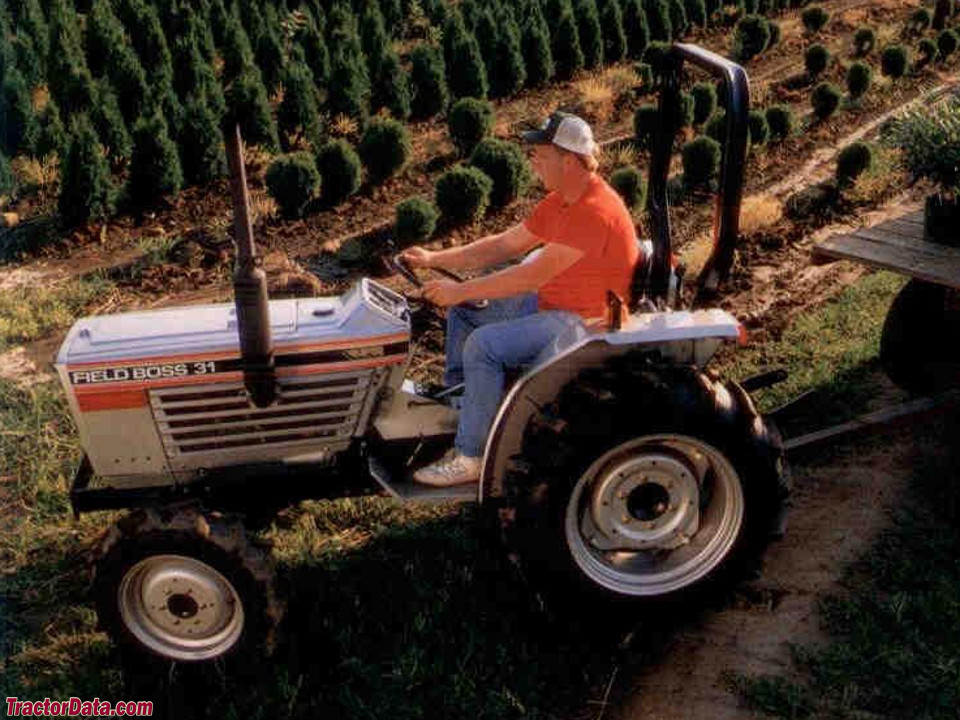

White Field Boss 31 tractor photo
1986 - 1988
Compact Utility tractor






Production:

Distributor:White
Manufacturer:Iseki
Original price (USD):$9,000 (1988)


White Field Boss 31 Engine:

   Isuzu 1.5L 3-cyl diesel
full engine details ...


Capacity:

Fuel:7.4 gal [28.0 L]


3-Point Hitch:

Rear Type:I


Power Take-off (PTO):

Rear PTO:independent
Rear RPM:540
Front PTO:live
Front RPM:2600


Dimensions & Tires:

Wheelbase:65 inches [165 cm]
Weight:2215 to 2414 pounds
Front tire:5.00-15
Rear tire:11.2-24 (2WD)
full dimensions and tires ...


White Field Boss 31 attachments:

 front-end loader
all Field Boss 31 attachments ...


Field Boss 31 Serial Numbers:

Location:Tractor frame on left
1986: TE4300FS00028 (4WD)
1987: TE4300FS00175 (4WD)
1988: TE4300FS00568 (4WD)
1986: TE4300TM00126 (2WD)
1987: TE4300TM00163 (2WD)
1988: TE4300TM00276 (2WD)

how to read serial numbers...



White Field Boss 31 Power:

Engine:30 hp [22.4 kW]
PTO (claimed):25 hp [18.6 kW]


Mechanical:

Chassis:4x2 2WD
 4x4 MFWD 4WD optional
Steering:manual (2WD)
 power (4WD)
Brakes:mechanical wet discs
Cab:Two-post ROPS. Optional canopy and radio.


Hydraulics:

Type:open center
Pressure:2135 psi [147.2 bar]
Total flow:7.7 gpm [29.1 lpm]


Electrical:

Charging system:alternator
Charging amps:35


Battery:

Volts:12
