J.I. Case 2094
|
|
| Production | |
| Manufacturer | J.I. Case |
| Row-Crop tractor | |
| Built in Racine, Wisconsin, USA | |
| Original price was $43,400 in 1984 | |
| J.I. Case 2094 Engine | |
| Case 8.3L 6-cyl diesel | |
 Engine details ... |
| J.I. Case 2094 Transmission | |
| 12-speed three-speed power shift | |
 Transmission details ... |
| J.I. Case 2094 Power | |
| Engine | 127 hp 94.7 kW |
| Drawbar (claimed) | 100 hp 74.6 kW |
| PTO (claimed) | 110 hp 82.0 kW |
| Drawbar (tested) | 98.66 hp 73.6 kW |
| PTO (tested) | 111.50 hp 83.1 kW |
 Performance test details ... | |
| Mechanical | |
| Two- or four-wheel drive | |
| Power steering | |
| Wet disc brakes | |
| Four-post ROPS. Silent Guardian cab optional with air-conditioning. |
| Photos | |
 | |
 J.I. Case 2094 photos... | |
| Capacity | |
| Fuel | 65 gal 246.0 L |
| 25 gal (optional auxiliary tank) 94.6 L | |
| Hydraulic system | 25 gal 94.6 L |
| Hydraulics | |
| Type | closed center |
| Capacity | 25 gal 94.6 L |
| Pressure | 2250 psi 155.1 bar |
| Valves | 2 to 4 *3 only with 4WD |
| Pump flow | 23 gpm 87.1 lpm |
| Steering flow | 8 gpm 30.3 lpm |
| Steering press. | 2000 psi 137.9 bar |
| Tractor hitch | |
| Rear Type | II |
| Rear lift (at 24"/610mm) | 6,600 lbs 2993 kg |
| Power Take-off (PTO) | |
| Rear PTO | independent |
| Clutch | hydraulic |
| Rear PTO Type | 540/1000 |
| Dimensions & Tires | |
| Wheelbase | 104 inches 264 cm |
| 110 inches*Optional long wheelbase. 279 cm | |
| Weight | 10950 to 14190 pounds |
| Front tire | 11.00x16 |
| Rear tire | 18.4x38 |
 Full dimensions and tires ... | |
| 2094 Serial Numbers | |
| Location: | Inside cab or on right-front frame |
| 1984 | 9931800 |
FAQ: How to read a serial number table. | |
| Electrical | |
| Ground | negative |
| Charging system | alternator |
| Charging amps | 72 |
| 105 OptOptional | |
| Battery volts | 12 |

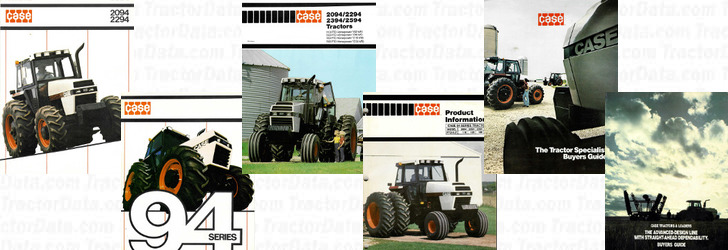

| References | |
 | |
| 2094 - 2294 published in 1983, by J.I. Case | |
| 94 Series published in 1983, by J.I. Case | |
| 2094/2294/2394/2594 Tractors published in 1983, by J.I. Case | |
| Product Information - Case 94 Series Tractors published in 1983, by J.I. Case | |
| The Tractor Specialist Buyers Guide published in 1984, by J.I. Case | |
| Tractor & Loaders Buyers Guide published in 1985, by J.I. Case |
