Tractors > J.I. Case > 1070

J.I. Case 1070 - transmission

J.I. Case 1070 tractor photo
1970 - 1978   70 Series
Model years
Row-Crop tractor
Next model:J.I. Case 2090
Series back:J.I. Case 970
more J.I. Case 1070 specifications...






Transmission:

Type:unsynchronized gear
Gears:8 forward and 2 reverse
Clutch:381mm dry disc
Speeds:

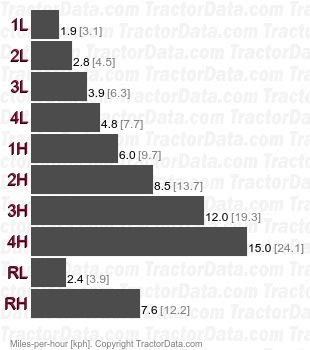

1070  unsynchronized gear speeds


Transmission:

Transmission:Range Power Shift
Type:partial power shift
Gears:12 forward and 4 reverse
Clutch:hydraulic wet discs
Four gears each with reverse and a three-speed forward power shift.
Speeds:

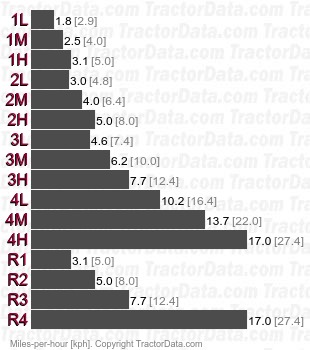

1070 Range Power Shift partial power shift speeds
