    J.I. Case 1031

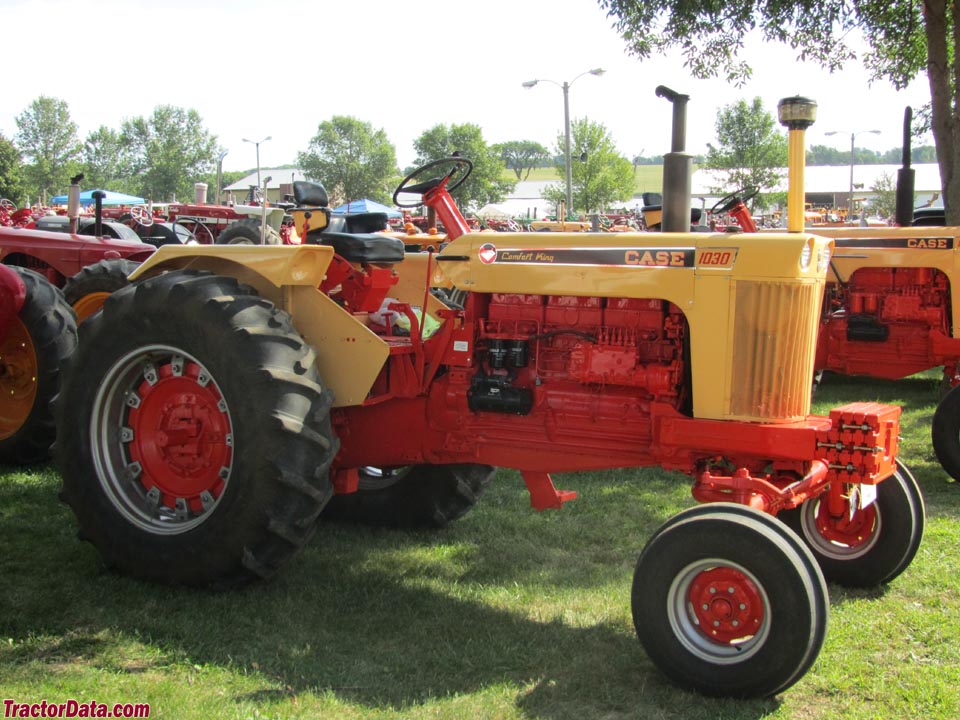

    J.I. Case 1031 tractor photo
    1966 - 1969   1030 Series
    Row-Crop tractor





    The Case 1030 series was composed of the model 1031 General-Purpose and the 1032 Western Special. There was, technically, no model code 1030, although all tractors carried a 1030 decal on the hood. The model code was stamped onto the serial number plate.


    Production:

    Manufacturer:J.I. Case
    Factory:Racine, Wisconsin, USA
    Total built:13,763 (all types)
    Original price (USD):$10,300 (1969)


    Variants:

    1031:1030 General-Purpose
    1032:1030 Western Special


    J.I. Case 1031 Engine:

       J.I. Case 7.4L 6-cyl diesel
    full engine details ...


    Capacity:

    Fuel:48 gal [181.7 L]


    3-Point Hitch:

    Rear Type:2


    Power Take-off (PTO):

    Rear PTO:independent
    Rear RPM:540
     1000
    Engine RPM:1000@1700


    Dimensions & Tires:

    Wheelbase:109 inches [276 cm]
    Weight:9335 to 16220 pounds
    Front tire:7.50x16
    Rear tire:15.5x38
    full dimensions and tires ...


    1031 Serial Numbers:

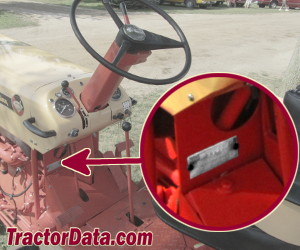

    Location:Tractor instrument panel, near steering column.

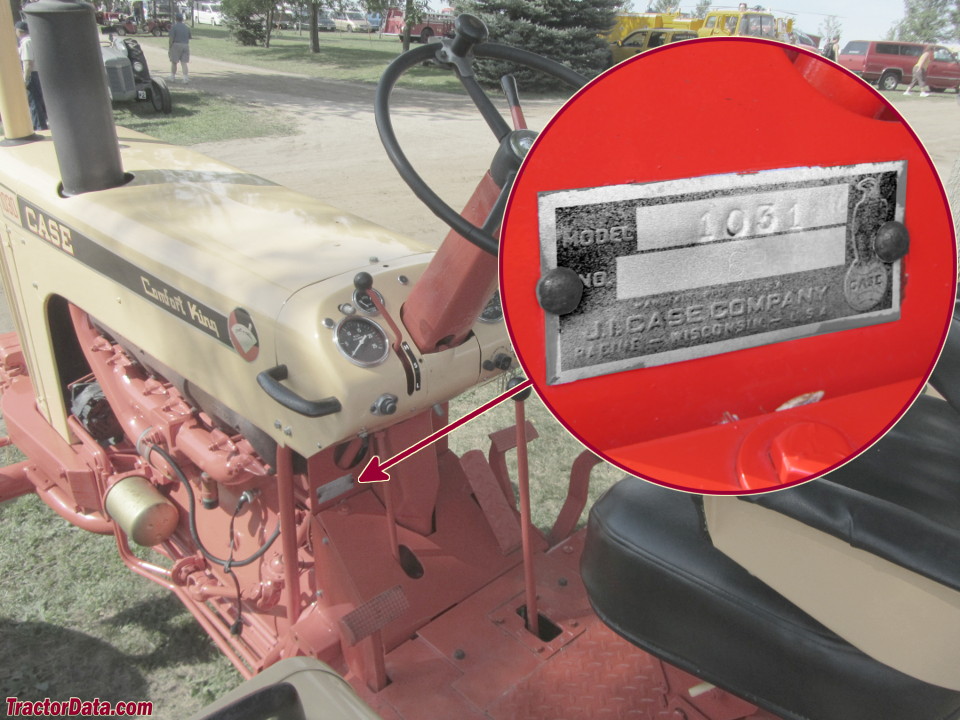

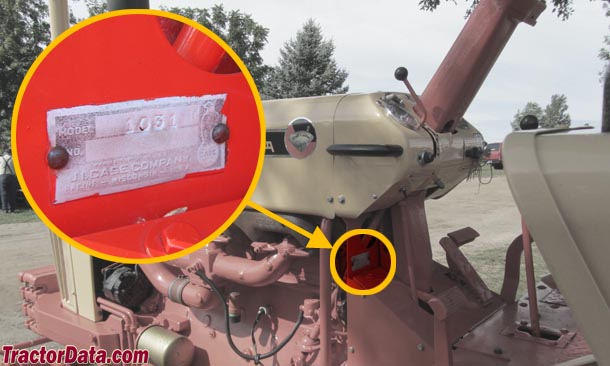

    photo of 1031 serial number

    1966: 8279001
    1967: 8306501
    1968: 8332101
    1969: 8356251

    how to read serial numbers...



    J.I. Case 1031 Power:

    Plows:7
    Drawbar (tested):88.34 hp [65.9 kW]
    PTO (tested):101.79 hp [75.9 kW]
    power test details ...


    Mechanical:

    Chassis:4x2 2WD
    Steering:power
    Brakes:disc
    Cab:Open operator station.


    Hydraulics:

    Valves:2
    Pump flow:12 gpm [45.4 lpm]


    Battery:

    Volts:12
