J.I. Case 830 Transmission


J.I. Case 830 tractor photo
1960 - 1969
830 Series
Standard-tread tractor
Series map:
830
73.3hp*
*Estimated engine power for comparison only.
Transmissions overview
8-speed gear
8-speed torque converter
Transmission
TransmissionDual Range
Typegear
Gears8 forward and 2 reverse
Clutchdry disc
Oil capacity9 qts (Eagle Hitch)
8.5 L
 68 qts
64.4 L
Speeds

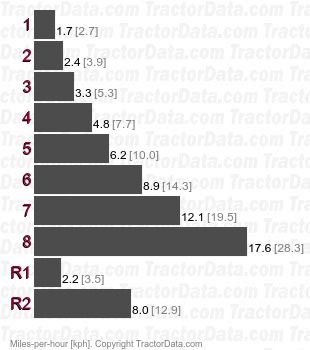

830 Dual Range gear speeds
Transmission
TransmissionCase-O-Matic
Typetorque converter
Gears8 forward and 2 reverse
Clutchwet disc
Speeds

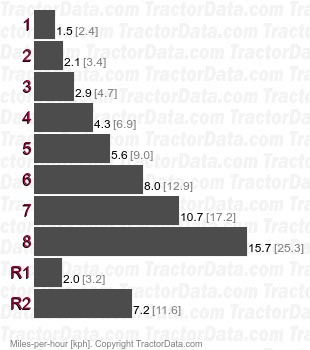

830 Case-O-Matic torque converter speeds
