Tractors > J.I. Case > 770

J.I. Case 770 - transmission

J.I. Case 770 tractor photo
1969 - 1972
Series next:J.I. Case 870
more J.I. Case 770 specifications...






Transmission:

Type:unsynchronized gear
Gears:8 forward and 2 reverse
Clutch:dry disc
Speeds:
770  unsynchronized gear speeds


Transmission:

Transmission:Range Power Shift
Type:partial power shift
Gears:12 forward and 4 reverse
Clutch:hydraulic wet discs
Four gears each with reverse and a three-speed forward powershift.
Speeds:

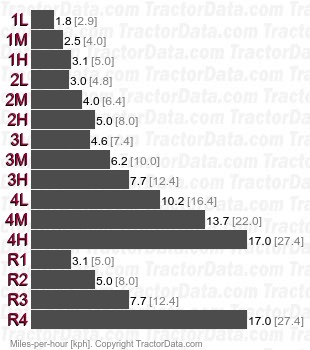

770 Range Power Shift partial power shift speeds
