Tractors > J.I. Case > 741

J.I. Case 741 Tests



J.I. Case 741 tractor photo
1960 - 1969
730 Series
Row-Crop tractor
Series map:
741
64.3hp*
*Estimated engine power for comparison only.
Tractor Tests
NTTL 778: gasoline Case-o-Matic 2WD
NTTL 779: gasoline Dual-Range 2WD
NTTL 781: LP gas Case-o-Matic 2WD
NTTL 782: LP gas Dual-Range 2WD
Nebraska Tractor Test 778

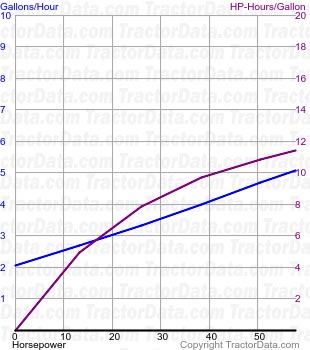

741 fuel use from test 778
Nebraska Tractor Test 778
Gasoline Case-o-Matic 2WD
November 2 - 12, 1960
Link: Nebraska Tractor Test 778 file
PTO performance
Power at rated engine speed57.88 hp
43.2 kW
Fuel use5.1 gal/hour
19.3 l/hour
Power at rated PTO speed55.22 hp
41.2 kW
Fuel use4.7 gal/hour
17.8 l/hour
Drawbar performance
Max power50.58 hp
37.7 kW
Fuel use5.2 gal/hour
19.7 l/hour
Gear 4 used for power test.
Max pull7512 lbs
3407 kg
Gear 2-Direct used for pull test.
Nebraska Tractor Test 779

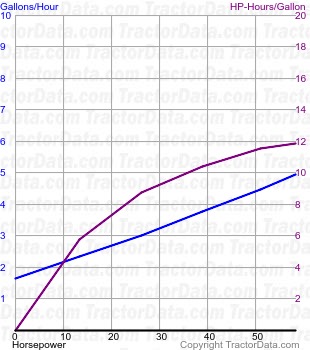

741 fuel use from test 779
Nebraska Tractor Test 779
Gasoline Dual-Range 2WD
November 3 - 12, 1960
Link: Nebraska Tractor Test 779 file
PTO performance
Power at rated engine speed57.79 hp
43.1 kW
Fuel use4.9 gal/hour
18.5 l/hour
Drawbar performance
Max power51.45 hp
38.4 kW
Fuel use4.9 gal/hour
18.5 l/hour
Gear 4 used for power test.
Max pull7619 lbs
3455 kg
Gear 2 used for pull test.
Nebraska Tractor Test 781

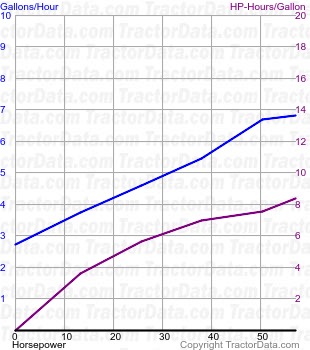

741 fuel use from test 781
Nebraska Tractor Test 781
LP gas Case-o-Matic 2WD
November 4 - 19, 1960
Link: Nebraska Tractor Test 781 file
PTO performance
Power at rated engine speed57.19 hp
42.6 kW
Fuel use7.2 gal/hour
27.3 l/hour
Power at rated PTO speed54.94 hp
41.0 kW
Fuel use6.5 gal/hour
24.6 l/hour
Drawbar performance
Max power51.98 hp
38.8 kW
Fuel use7.0 gal/hour
26.5 l/hour
Gear 3 used for power test.
Max pull7626 lbs
3459 kg
Gear 2 used for pull test.
Nebraska Tractor Test 782

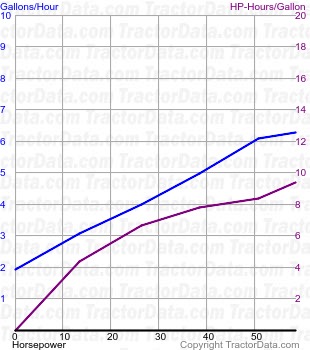

741 fuel use from test 782
Nebraska Tractor Test 782
LP gas Dual-Range 2WD
November 7 - 19, 1960
Link: Nebraska Tractor Test 782 file
PTO performance
Power at rated engine speed57.92 hp
43.2 kW
Fuel use6.2 gal/hour
23.5 l/hour
Drawbar performance
Max power52.51 hp
39.2 kW
Fuel use6.4 gal/hour
24.2 l/hour
Gear 4 used for power test.
Max pull7666 lbs
3477 kg
Gear 4 used for pull test.
