Tractors > J.I. Case > 731

J.I. Case 731 - tests

J.I. Case 731 tractor photo
1960 - 1969   730 Series
Row-Crop tractor
more J.I. Case 731 specifications...






Nebraska Tractor Test 742:

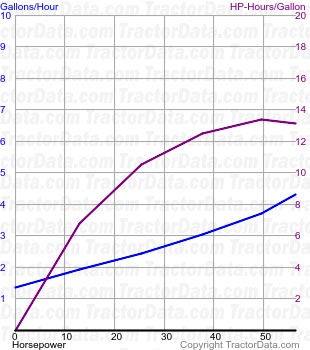

731 fuel use from test 742
Test Date:April 19 - May 6, 1960
Type:Diesel Case-O-Matic 2WD
PTO power (rated engine speed):56.50 hp [42.1 kW]
PTO fuel use (engine speed):4.3 gal/hour [16.3 l/hour]
PTO power (rated PTO speed):53.46 hp [39.9 kW]
PTO fuel use (PTO speed):3.9 gal/hour [14.8 l/hour]
Drawbar power (max):48.31 hp [36.0 kW]
Drawbar fuel use (max):4.2 gal/hour [15.9 l/hour]
Drawbar pull (max):7362 lbs [3339 kg]
Max pull gear:2-Torque
Test report:PDF file


Nebraska Tractor Test 743:

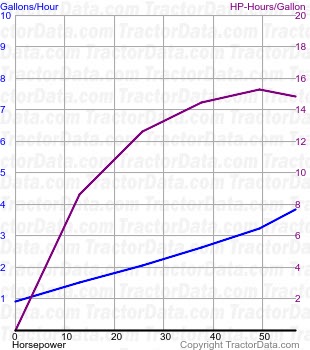

731 fuel use from test 743
Test Date:April 21 - May 6, 1960
Type:Diesel 8-speed 2WD
PTO power (rated engine speed):56.43 hp [42.1 kW]
PTO fuel use (engine speed):3.8 gal/hour [14.4 l/hour]
Drawbar power (max):48.33 hp [36.0 kW]
Drawbar fuel use (max):3.8 gal/hour [14.4 l/hour]
Drawbar pull (max):7531 lbs [3416 kg]
Max pull gear:2
Test report:PDF file
