Minneapolis-Moline UDLX Comfortractor

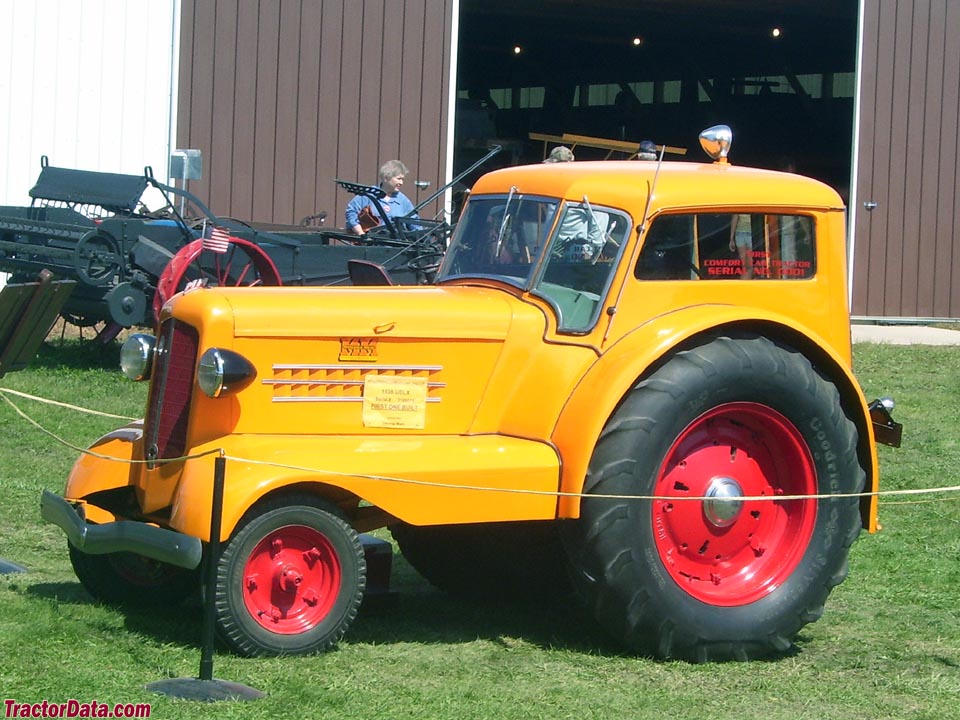

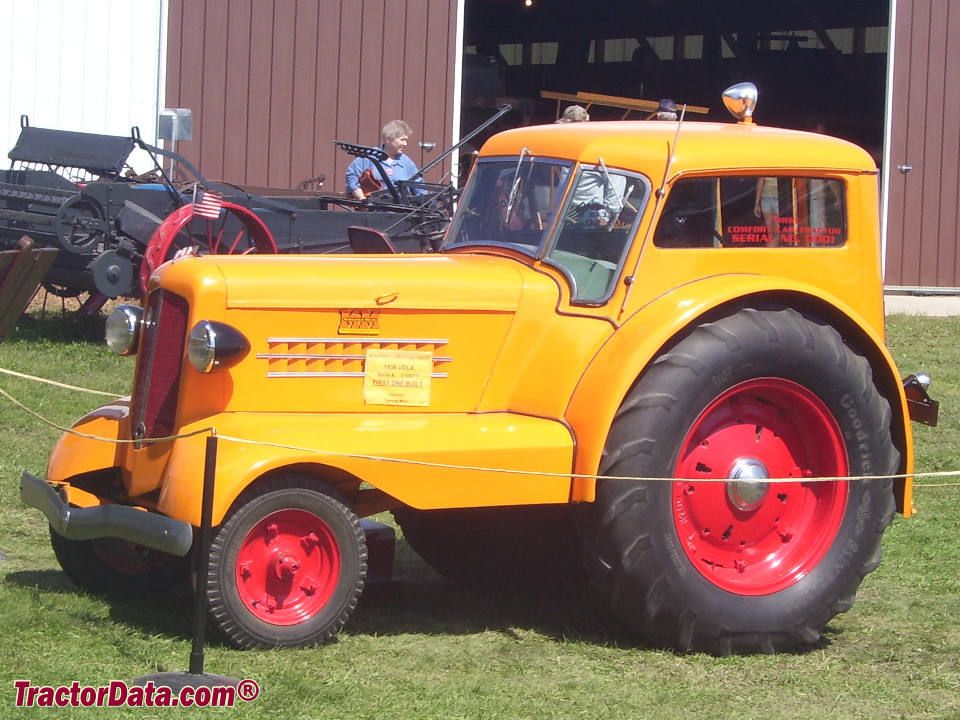

Minneapolis-Moline UDLX Comfortractor tractor photo
1938 - 1941
Model U Series
Production
ManufacturerMinneapolis-Moline
Total built125
Original price was $2,155 in 1938
The Minneapolis-Moline UDLX was the first production farm tractor with cab. Designed to operate as both a tractor and automobile, the UDLX was equipped with a 40 mile-per-hour road gear.
Variants
UTUrow-crop front
UTSstandard-front
UDLXComfotractor with cab
UTOXComfotractor roadster
UTILindustrial with shuttle shift
UBimproved operator platform
Minneapolis-Moline UDLX Engine
Minneapolis-Moline 4.6L 4-cyl gasoline
Engine details ...
Minneapolis-Moline UDLX Power
Drawbar (claimed)27 hp
20.1 kW
PTO (claimed)36 hp
26.8 kW
Plows3-4
Mechanical
Two-wheel drive
Manual steering
Mechanical drum brakes
Cab standard with heat, radio, and second seat.
Dimensions & Tires
Wheelbase81 inches
205 cm
Weight6,400 lbs
2903 kg
Front tire6.00x16
Full dimensions and tires ...
References
UDLX Comfortractor references literature
Hats Off to a Greater Modern Tractor published in 1939, by Minneapolis-Moline
