J.I. Case 540 Tests
|
|
| Nebraska Tractor Test 769 | |||
| |||
| Nebraska Tractor Test 769 | |
| Gasoline Case-O-Matic 2WD October 11 - 22, 1960 Link: Nebraska Tractor Test 769 file | |
| PTO performance | |
| Power at rated engine speed | 41.26 hp 30.8 kW |

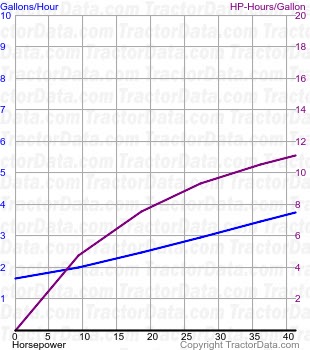

| Fuel use | 3.7 gal/hour 14.0 l/hour |
| Power at rated PTO speed | 40.32 hp 30.1 kW |
| Fuel use | 3.6 gal/hour 13.6 l/hour |
| Drawbar performance | |
| Max power | 36.37 hp 27.1 kW |
| Fuel use | 3.5 gal/hour 13.2 l/hour |
| Gear 5 used for power test. | |
| Max pull | 6,300 lbs 2857 kg |
| Gear 1 used for pull test. | |
| Nebraska Tractor Test 771 | |||
| |||
| Nebraska Tractor Test 771 | |
| Gasoline 12-speed 2WD October 11 - 27, 1960 Link: Nebraska Tractor Test 771 file | |
| PTO performance | |
| Power at rated engine speed | 39.50 hp 29.5 kW |

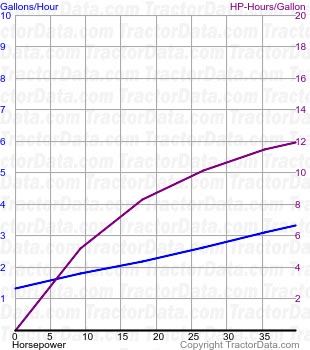

| Fuel use | 3.3 gal/hour 12.5 l/hour |
| Power at rated PTO speed | 38.22 hp 28.5 kW |
| Fuel use | 3.1 gal/hour 11.7 l/hour |
| Drawbar performance | |
| Max power | 32.85 hp 24.5 kW |
| Fuel use | 3.2 gal/hour 12.1 l/hour |
| Gear 5 used for power test. | |
| Max pull | 5,834 lbs 2646 kg |
| Gear 1 used for pull test. | |
