Tractors > J.I. Case > 530

J.I. Case 530 - tests

J.I. Case 530 tractor photo
1960 - 1969   530 Series
Utility tractor
more J.I. Case 530 specifications...






Nebraska Tractor Test 772:

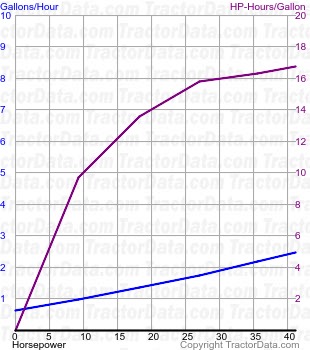

530 fuel use from test 772
Test Date:October 12 - 27, 1960
Type:Diesel 12-speed 2WD
PTO power (rated engine speed):41.27 hp [30.8 kW]
PTO fuel use (engine speed):2.5 gal/hour [9.5 l/hour]
PTO power (rated PTO speed):39.41 hp [29.4 kW]
PTO fuel use (PTO speed):2.4 gal/hour [9.1 l/hour]
Drawbar power (max):37.03 hp [27.6 kW]
Drawbar fuel use (max):2.4 gal/hour [9.1 l/hour]
Drawbar pull (max):6,124 lbs [2777 kg]
Max pull gear:1
Test report:PDF file


Nebraska Tractor Test 786:

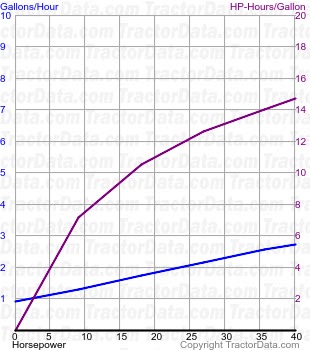

530 fuel use from test 786
Test Date:April 6 - 18, 1961
Type:Diesel Case-O-Matic 2WD
PTO power (rated engine speed):40.26 hp [30.0 kW]
PTO fuel use (engine speed):2.7 gal/hour [10.2 l/hour]
PTO power (rated PTO speed):39.05 hp [29.1 kW]
PTO fuel use (PTO speed):2.6 gal/hour [9.8 l/hour]
Drawbar power (max):35.59 hp [26.5 kW]
Drawbar fuel use (max):2.7 gal/hour [10.2 l/hour]
Drawbar pull (max):6,058 lbs [2747 kg]
Max pull gear:1
Test report:PDF file
