Tractors > J.I. Case > 511-B

J.I. Case 511-B - tests

J.I. Case 511-B tractor photo
1958 - 1960   500B Series
Row-Crop tractor
Previous model:J.I. Case 351
more J.I. Case 511-B specifications...






Nebraska Tractor Test 646:

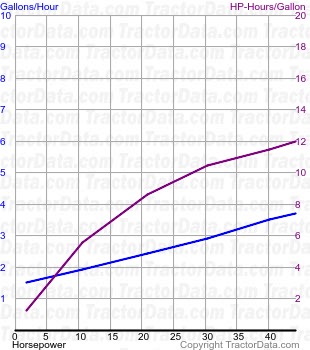

511-B fuel use from test 646
Test Date:April 14 - 18, 1958
Type:Gasoline 12-speed 2WD
Belt power (max):45.10 hp [33.6 kW]
Belt fuel use (max):4.1 gal/hour [15.5 l/hour]
Drawbar power (max):39.05 hp [29.1 kW]
Drawbar pull (max):5,635 lbs [2556 kg]
Max pull gear:1
Test report:PDF file
