J.I. Case 441 Transmission


J.I. Case 441 tractor photo
1960 - 1969
430 Series
Row-Crop tractor
Transmission options
4-speed unsynchronized gear
12-speed unsynchronized gear
8-speed mechanical shuttle
8-speed unsynchronized gear
Transmission
Typeunsynchronized gear
Gears4 forward and 1 reverse
Clutch234mm dry disc
Speeds
With 10-28 rear tires.

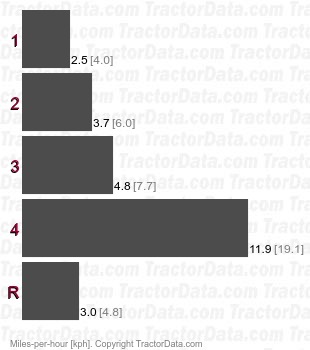

441  unsynchronized gear speeds

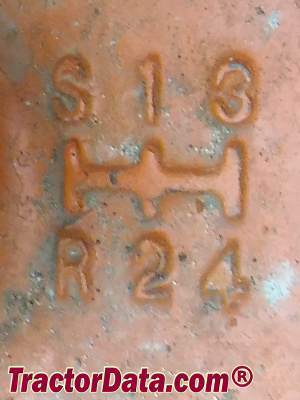

Shift Pattern
J.I. Case 441 transmission controls
Transmission
TransmissionTripl-Range
Typeunsynchronized gear
Gears12 forward and 3 reverse
Clutch234mm dry disc
Tripl-Range adds three ranges (low, direct, and high) to the basic four-speed transmission.
Speeds

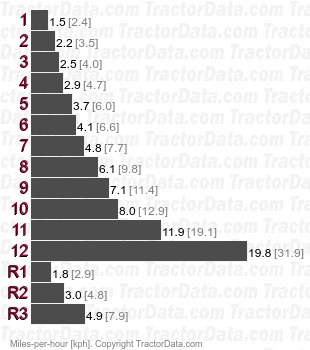

441 Tripl-Range unsynchronized gear speeds

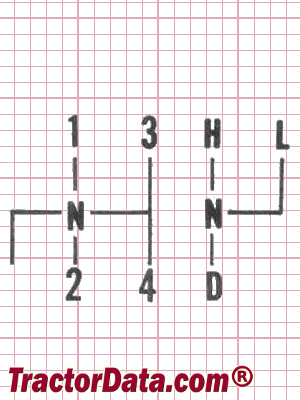

Shift Pattern
J.I. Case 441 transmission controls
Transmission
TransmissionDual-Range Shuttle
Typemechanical shuttle
Gears8 forward and reverse
Clutch279.4mm dry disc
Four gears in two ranges with mechanical shuttle.

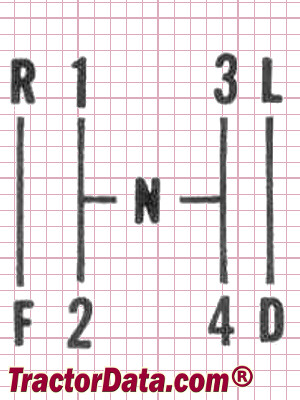

Shift Pattern
J.I. Case 441 transmission controls
Transmission
TransmissionDual Range
Typeunsynchronized gear
Gears8 forward and 2 reverse
Clutch254mm dry disc
Speeds

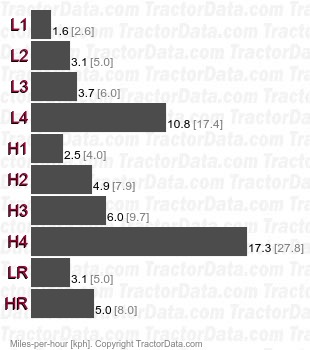

441 Dual Range unsynchronized gear speeds
