| | 1956 - 1958 |
| 300 Series | | Row-Crop tractor |
|
| Engines overview |
| J.I. Case 2.4L 4-cyl gasoline |
| Case 2.4L 4-cyl LP Gas |
| Engine Detail |

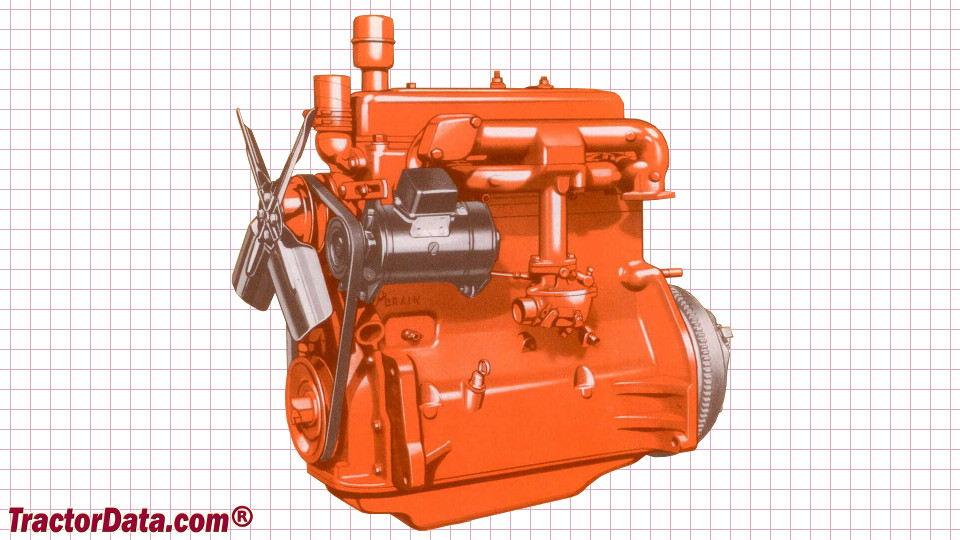

| J.I. Case G148 |
| gasoline |
| 4-cylinder |
| liquid-cooled vertical I-head |
| Displacement | 148 ci
2.4 L
|
| Bore/Stroke | 3.375x4.125 inches
86 x 105 mm
|
| Air cleaner | oil bath
|
| Compression | 7.1:1
|
| Rated RPM | 1750
|
| Starter volts | 6
|
| Coolant capacity | 12 qts
11.4 L
|
| J.I. Case 311 Engine |
 |
| Engine Detail |
| Case |
| LP Gas |
| 4-cylinder |
| liquid-cooled |
| Displacement | 148 ci
2.4 L
|
| Bore/Stroke | 3.375x4.125 inches
86 x 105 mm
|
| Air cleaner | oil bath
|
| Rated RPM | 1750
|
