| | 1956 - 1958 |
| 300 Series | | Utility tractor |
|
Series map:
310
32.2hp*
*Estimated engine power for comparison only.
| Engine options |
| J.I. Case 2.4L 4-cyl gasoline |
| J.I. Case 2.4L 4-cyl LP Gas |
| Engine Detail |
| J.I. Case G148 |
| gasoline |
| 4-cylinder |
| liquid-cooled |
| Displacement | 148 ci
2.4 L
|
| Bore/Stroke | 3.375x4.125 inches
86 x 105 mm
|
| Air cleaner | oil bath
|
| Compression | 7.1:1
|
| Rated RPM | 1750
|
| Starter volts | 6
|
| Oil capacity | 4 qts
3.8 L
|
| Coolant capacity | 12 qts
11.4 L
|

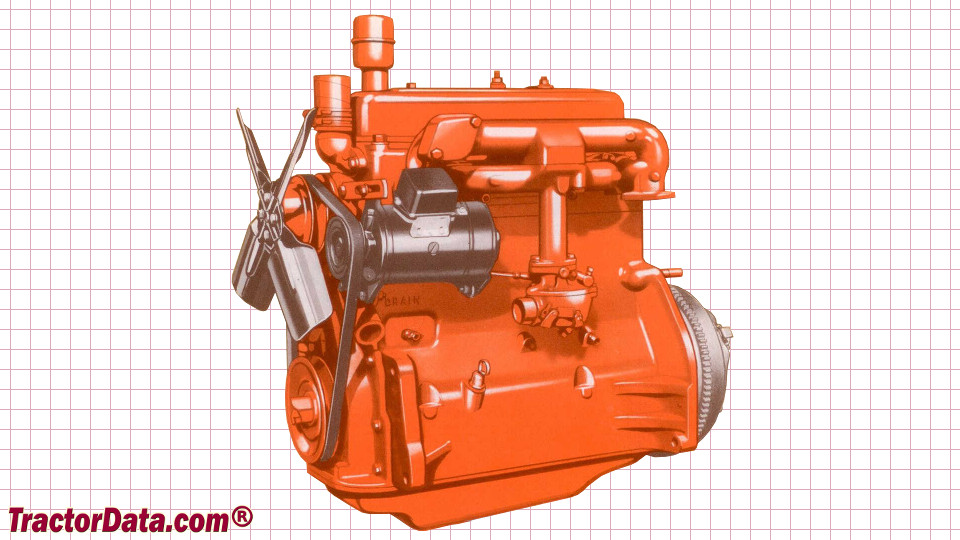

| J.I. Case 310 Engine |
 |
| Engine Detail |
| J.I. Case |
| LP Gas |
| 4-cylinder |
| liquid-cooled |
| Displacement | 148 ci
2.4 L
|
| Bore/Stroke | 3.375x4.125 inches
86 x 105 mm
|
| Air cleaner | oil bath
|
| Rated RPM | 1750
|
| Starter volts | 6
|
