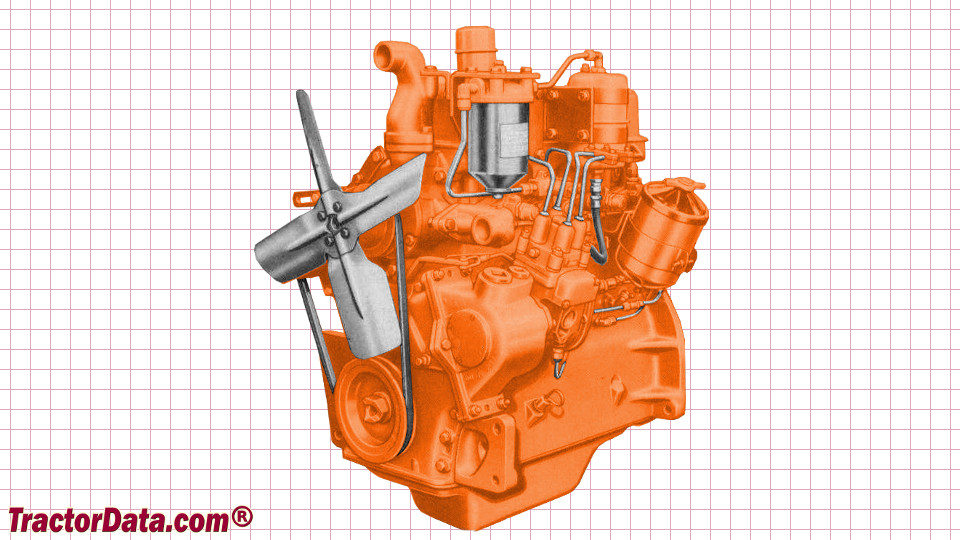

    J.I. Case 302 - engine

    No photo available  I&T Manual: Case C, D, L, R, S, V, 200, 300, 450, 400, 500, 600, 700, 800
    I&T Shop Manual
    1956 - 1958   300 Series
    High-Clearance tractor
    Next model:J.I. Case 302-B
    more J.I. Case 302 specifications...






    Engine Detail:

     Continental GD157
     diesel
     4-cylinder
     liquid-cooled
     157 ci [2.6 L]
    Bore/Stroke:3.375x4.375 inches [86 x 111 mm]
    Air cleaner:oil bath
    Pre-heating:ether
    Compression:15.5:1
    Rated RPMs:1750
    Starter volts:12
    Coolant capacity:12 qts [11.4 L]
