Tractors > J.I. Case > LA

J.I. Case LA - tests

J.I. Case LA tractor photo
1940 - 1953
Standard-tread tractor
Previous model:J.I. Case L
Next model:J.I. Case 500
more J.I. Case LA specifications...






Nebraska Tractor Test 480:

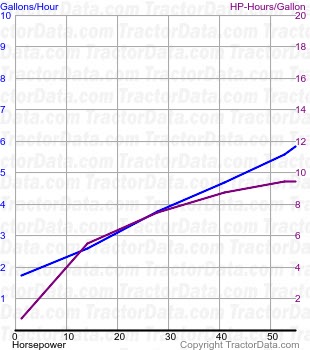

LA fuel use from test 480
Test Date:August 15 - 28, 1952
Type:Gasoline 4-speed 2WD
Belt power (max):58.53 hp [43.6 kW]
Belt fuel use (max):5.8 gal/hour [22.0 l/hour]
Drawbar power (max):51.68 hp [38.5 kW]
Drawbar pull (max):6,659 lbs [3020 kg]
Max pull gear:1
Test report:PDF file


Nebraska Tractor Test 481:

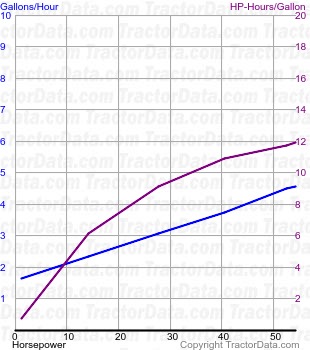

LA fuel use from test 481
Test Date:August 18 - 29, 1952
Type:Tractor fuel 4-speed 2WD
Belt power (max):48.86 hp [36.4 kW]
Belt fuel use (max):5.0 gal/hour [18.9 l/hour]
Drawbar power (max):44.51 hp [33.2 kW]
Drawbar pull (max):6,444 lbs [2922 kg]
Max pull gear:1
Test report:PDF file


Nebraska Tractor Test 482:

LA fuel use from test 482
Test Date:August 21 - September 6, 1952
Type:LP gas 4-speed 2WD
Belt power (max):59.60 hp [44.4 kW]
Belt fuel use (max):6.7 gal/hour [25.4 l/hour]
Drawbar power (max):51.73 hp [38.6 kW]
Drawbar pull (max):6,874 lbs [3118 kg]
Max pull gear:1
Test report:PDF file
