Tractors > J.I. Case > L

J.I. Case L - tests

J.I. Case L tractor photo
1929 - 1940
Standard-tread tractor
Next model:J.I. Case LA
more J.I. Case L specifications...


Nebraska Tractor Test 309:

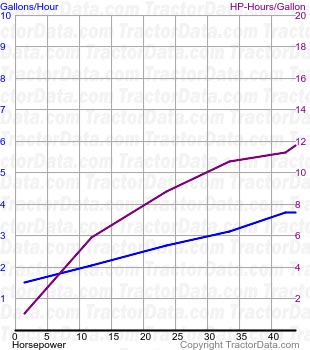

L fuel use from test 309
Test Date:October 10 - 24, 1938
Type:Gasoline 3-speed 2WD
Belt power (max):47.04 hp [35.1 kW]
Belt fuel use (max):4.5 gal/hour [17.0 l/hour]
Drawbar power (max):40.80 hp [30.4 kW]
Drawbar pull (max):4,474 lbs [2029 kg]
Max pull gear:1
Test report:PDF file
