David Brown 1412
|
|
| Production | |
| Manufacturer | David Brown |
| Built in Meltham Mills, Huddersfield, England. | |
| Original price was $12,700 in 1976 | |
| David Brown 1412 Engine | |
| David Brown 3.6L 4-cyl diesel | |
| Fuel tank | 21.1 gal 79.9 L |
 Engine details ... | |
| David Brown 1412 Transmission | |
| 12-speed partial power shift | |
 Transmission details ... |
| David Brown 1412 Power | |
| Engine (net) | 91 hp 67.9 kW |
| Drawbar (claimed) | 65 hp 48.5 kW |
| PTO (claimed) | 81 hp 60.4 kW |
| Drawbar (tested) | 64.47 hp 48.1 kW |
| PTO (tested) | 80.61 hp 60.1 kW |
 Performance test details ... | |
| Mechanical | |
| Two-wheel drive | |
| Power steering | |
| Differential wet disc brakes | |
| Two-post fixed ROPS. Cab optional. |

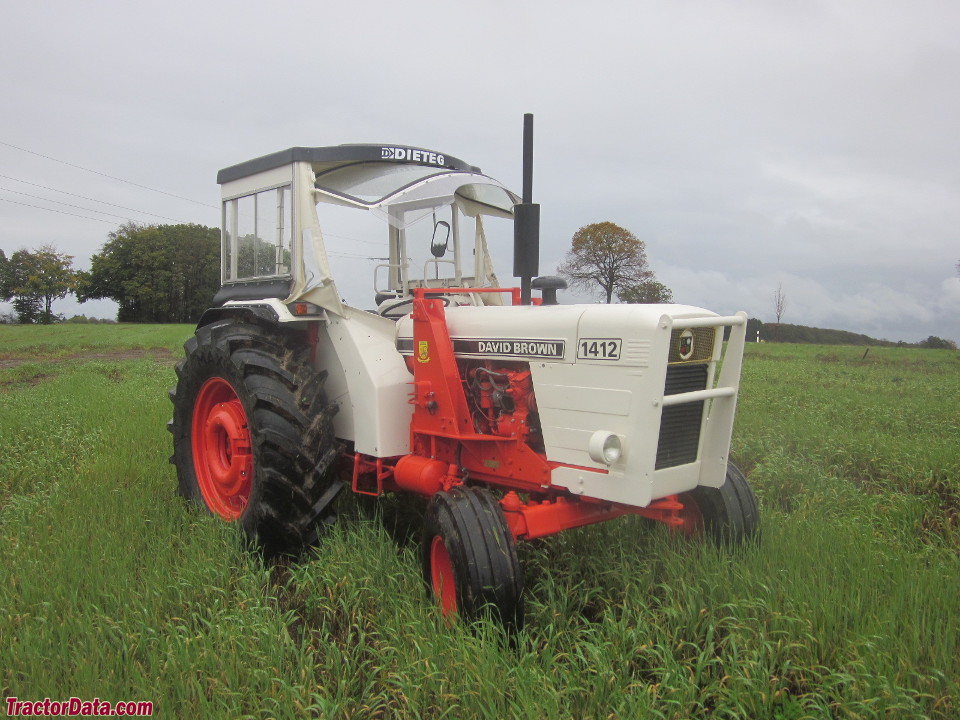

| Photos | |
 | |
 David Brown 1412 photos... | |
| Hydraulics | |
| Type | open center |
| Pressure | 2000 psi 137.9 bar |
| Pump flow | 6.5 gpm 24.6 lpm |
| Tractor hitch | |
| Rear Type | II |
| Rear lift | 2600 lbs (recommended) 1179 kg |
| 4500 lbs (max) 2041 kg | |
| Power Take-off (PTO) | |
| Rear PTO | independent |
| Rear PTO Type | 540/1000 |
| Engine RPM | 540@1800 |
| 1000@2000 | |
| Dimensions & Tires | |
| Wheelbase | 90 inches 228 cm |
| Weight | 7660 lbs 3474 kg |
| Front tire | 7.50-16 |
| Rear tire | 16.9/14-34 |
 Full dimensions and tires ... | |
| Electrical | |
| Charging system | alternator |
| Battery volts | 12 |
| Battery AH | 100 |
| References | |
 | |
| 1412 Hydra-Shift published by David Brown |
