Tractors > David Brown > 780

David Brown 780

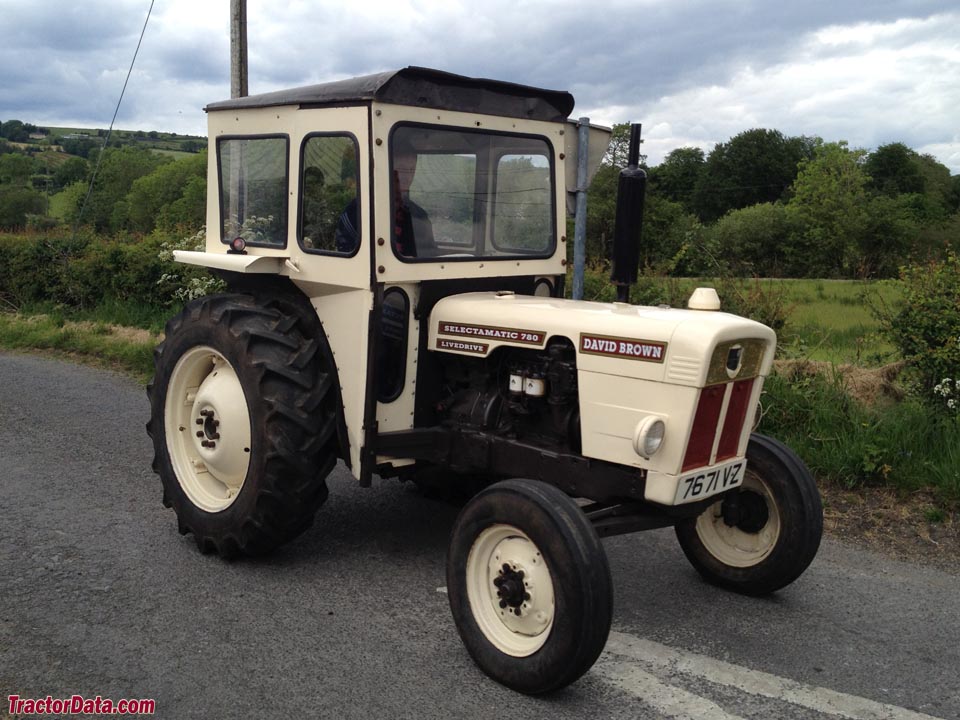

David Brown 780 tractor photo
1967 - 1971






Production:

Manufacturer:David Brown
Factory:Meltham Mills, Huddersfield, England
Total built:8,986
Original price (USD)
   $4,000 (1971 )


David Brown 780 Engine:

   David Brown 2.7L 3-cyl diesel
full engine details ...


Capacity:

Fuel:9.5 gal [36.0 L]


3-Point Hitch:

Rear Type:I
Rear lift:1600 lbs [725 kg]


Power Take-off (PTO):

Rear PTO:live
Rear RPM:540/1000
Engine RPM:540@1828
1000@2000


Dimensions & Tires:

Wheelbase:75.8 inches [192 cm]
Weight:3,470 lbs [1573 kg]
Front tire:6.00-16
Rear tire:12.4/11-28
full dimensions and tires ...


780 Serial Numbers:

Location:Front-right side of chassis, just behind the radiator
1967: 600001
1968: 600879
1969: 602853
1970: 606109
1971: 609665

how to read serial numbers...



David Brown 780 Power:

Engine (gross):46 hp [34.3 kW]
Drawbar (claimed):38.9 hp [29.0 kW]
PTO (claimed):42.9 hp [32.0 kW] *Maximum PTO power. Rated power at 540 RPM was 37.1 HP.


Mechanical:

Chassis:4x2 2WD
Steering:manual
Brakes:mechanical drum


Hydraulics:

Pressure:2000 psi [137.9 bar]
Pump flow:7.4 gpm [28.0 lpm]
Oil type:
SAE20W30
SAE20W40



Electrical:

Ground:negative
