International Harvester 7288 Transmission


International Harvester 7288 tractor photo
1985
70 Series
Four-wheel Drive (4WD) tractor
Series map:
7288
7488
210.0hp
235.0hp
Transmission
TransmissionTri-Six
Typepartial power shift
Gears18 forward and 6 reverse
Clutchhydraulic wet disc
Oil capacity172 qts
162.8 L
The Synchro Tri-Six provides six gears with high, medium, low, and reverse ranges. A power shift exists with gear pairs (1/2, 3/4, 5/6) then the clutch needed to shift between pairs.

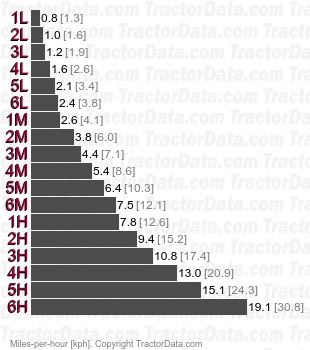

Speeds
7288 Tri-Six partial power shift speeds
Shift Pattern
International Harvester 7288 transmission controls
