International Harvester 4300

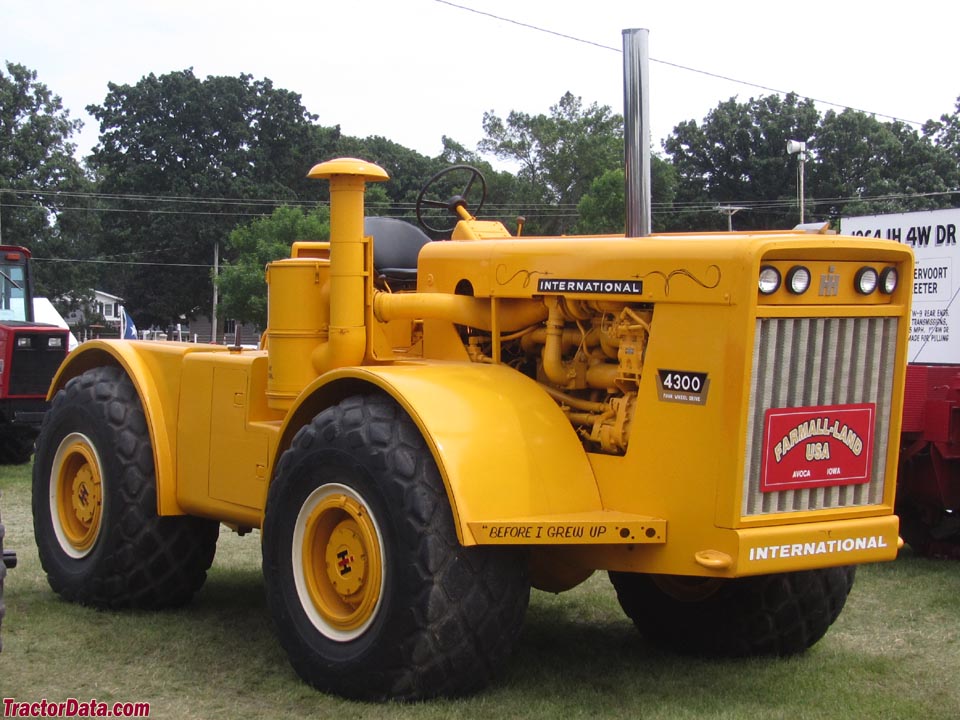

International Harvester 4300 tractor photo
1961 - 1965
Four-wheel Drive (4WD) tractor
Hough built
Series:4300
4100
Production
Distributor:International Harvester
Manufacturer:Hough
Type:Four-wheel Drive (4WD) tractor
Factory:Libertyville, Illinois, USA
Total built:44
Original price:$12,000 (1970 )
The massive model 4300 tractor was International's entry into the large four-wheel drive market. The tractor was built by Hough (manufacturer of the Pay Loader) and the final design was influenced by a desire to be larger than the John Deere 8010. Unfortunately for International, the 4300 was "too big, too soon" and production was limited.
International Harvester 4300 Power
Engine:300 hp
223.7 kW
Drawbar (claimed):180 hp
134.2 kW
Plows:10
Drawbar (tested):203.32 hp
151.6 kW
power test details ...
International Harvester 4300 Engine
International Harvester 13.4L 6-cyl diesel
Engine details ...
Mechanical
Chassis:4x4 4WD
Steering:hydraulic powered two- or four-wheel steering
Brakes:air brakes
Cab:Open operator station. Cab optional with available air-conditioning.
Transmissions:6-speed
 8-speed
Transmission details ...
Capacity
Fuel:168 gal
635.9 L
Steering:60 qts
56.8 L
Hydraulics
Valves:3
Pump flow:40 gpm
151.4 lpm
 55 gpm
208.2 lpm *Optional
Steering flow:40 gpm
151.4 lpm
Steering cap.:60 qts
56.8 L
Dimensions & Tires
Wheelbase:120 inches
304 cm
Weight:29,815 lbs
13524 kg
Front tire:23.1-26
Rear tire:23.1-26
Full dimensions and tires ...
4300 Serial Numbers
Location:Serial number plate below steering column
photo of 4300 serial number

1961:87AH1001
Final:87AH1045

how to read serial numbers...

Links
Rare & Restored: Farm Collector article on a surviving 4300
Electrical
Charging system:alternator
Charging amps:50
Batteries:4
Battery volts:6
