Tractors > International Harvester > 4300

International Harvester 4300 Engine



International Harvester 4300 tractor photo
1961 - 1965
Four-wheel Drive (4WD) tractor
Hough built
Series map:
4300
300.0hp
Engine Detail
International Harvester DT-817
turbocharged diesel
6-cylinder
liquid-cooled
Displacement817 ci
13.4 L
Bore/Stroke5.375x6.00 inches
137 x 152 mm
Power300 hp
223.7 kW
Air cleanerdry with paper element
Compression15.5:1
Rated RPM2100
Starter volts12
Oil capacity34 qts
32.2 L
Coolant capacity69 qts
65.3 L

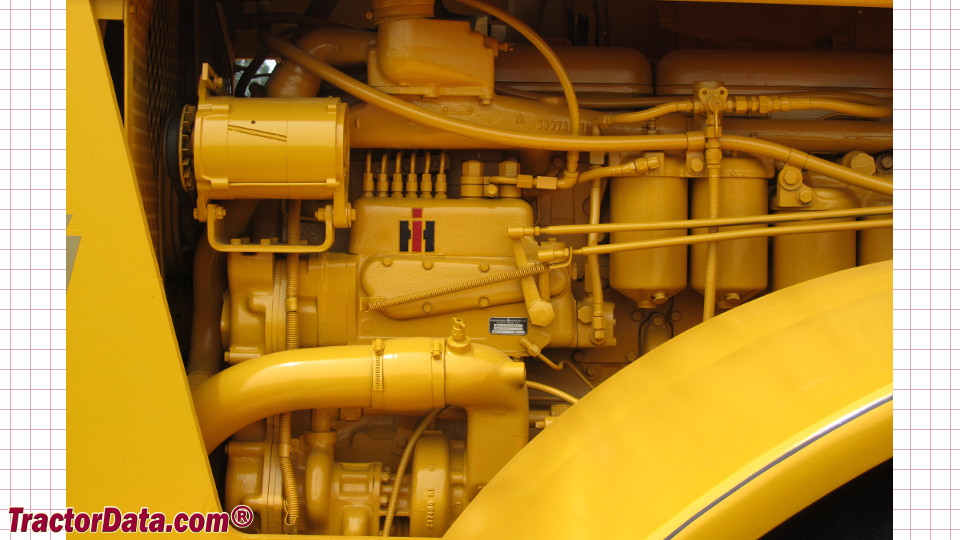

International Harvester 4300 Engine
International Harvester 4300 engine image
