    International Harvester 1466 - transmission

    International Harvester 1466 tractor photo I&T Manual: IH 544, 656, 666, 686, 684, 784, 884, 1466, 1468, 1486, 1568, 1586, Hydro 70, 84, 86, 100, 186
    I&T Shop Manual
    1971 - 1976   66 Series
    Row-Crop tractor
    Next model:International Harvester 1486
    Larger:International Harvester 1468
    Smaller:International Harvester 1066
    more International Harvester 1466 specifications...






    Transmission:

    Transmission:gear
    Gears:8 forward and 4 reverse
    Oil capacity:88 qts [83.3 L]
    Four gears each in high, low, and reverse ranges.
    Speeds:With 18.4-38 rear tires.

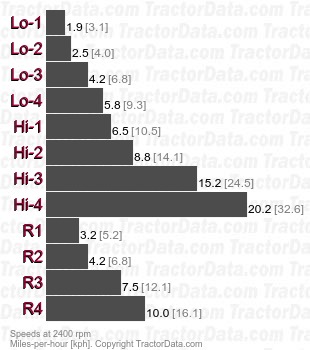

    1466 gear speeds


    Transmission:

    Transmission:Torque Amplifier
    Gears:16 forward and 8 reverse
    Oil capacity:88 qts [83.3 L]
    The Torque Amplifier (TA) provides a power shift in all gears and ranges from direct drive (DD) to a lower TA speed. Without clutching the TA lever is pulled to the rear to engage. The transmission is returned to direct drive by pushing the TA lever forward.
    Speeds:With 18.4-38 rear tires.

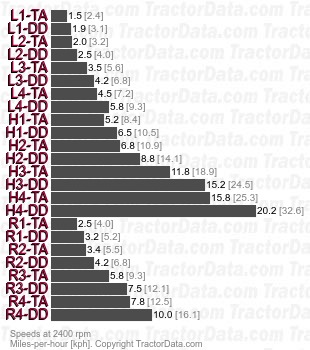

    1466 Torque Amplifier speeds
