    International Harvester 884 - transmission

    International Harvester 884 tractor photo I&T Manual: IH 544, 656, 666, 686, 684, 784, 884, 1466, 1468, 1486, 1568, 1586, Hydro 70, 84, 86, 100, 186
    I&T Shop Manual
    1979 - 1984
    Smaller:International Harvester 784
    more International Harvester 884 specifications...






    Transmission:

    Transmission:Torque Amplifier
    Gears:16 forward and 8 reverse
    Oil capacity:36 qts [34.1 L]
    The basic transmission provides four gears in each of high, low, and reverse ranges. The Torque Amplifier (TA) provides an on-the-move clutchless power shift from direct drive (DD) to the lower TA speed.

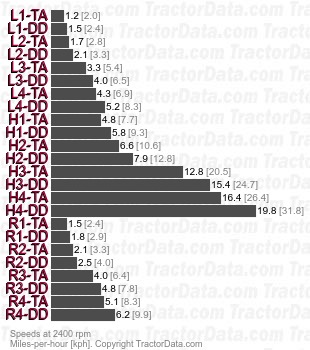

    Speeds:With 18.4-30 rear tires.
    884 Torque Amplifier speeds
