    International Harvester 706

    International Harvester 706 tractor photo I&T Manual: IH 706, 756, 806, 856, 1206, 1256, 1456, 104, 140
    I&T Shop Manual
    1963 - 1967
    Standard-tread tractor
    Next model:International Harvester 756
    Larger:International Harvester 806





    The 706 was available with a new Torque Amplifier design that prevented free-wheeling when going downhill. An over-center hand clutch was an option, usually found on Wheatland (standard tread) models. The 706 was available with either the Fast Hitch or a standard 3-point hitch. The PTO featured both 540 and 1000 RPM shafts, both of which turned while in use.


    Production:

    Manufacturer:International Harvester
    Total built:5,487
    Original price (USD):$6,100 (1967)


    Variants:

    Farmall 706:row-crop
    IH 706:standard-tread
    IH 2706:industrial
    706 Hi-Clear:high-crop


    International Harvester 706 Engines:

       International Harvester 4.6L 6-cyl diesel
       International Harvester 5.1L 6-cyl diesel
       International Harvester 4.3L 6-cyl gasoline
       Interntional Harvester 4.8L 6-cyl gasoline
    full engine details ...


    Capacity:

    Fuel:33 gal [124.9 L] (gas/diesel)
     39 gal [147.6 L] (LP gas)
    Hydraulic system:17 gal [64.3 L]


    Rear Hitch:

    Type:IH Fast Hitch


    3-Point Hitch:

    Rear Type:II/I
    Control:torsion bar (optional)


    Power Take-off (PTO):

    Rear PTO:independent
    Rear RPMs:540/1000


    Dimensions & Tires:

    Wheelbase:87.5 inches [222 cm] (2WD)
     87 inches [220 cm] (4WD)
    Weight:8100 to 10710 pounds
    Front tire:7.50-18
    Rear tire:18.4-30
    full dimensions and tires ...


    706 Serial Numbers:

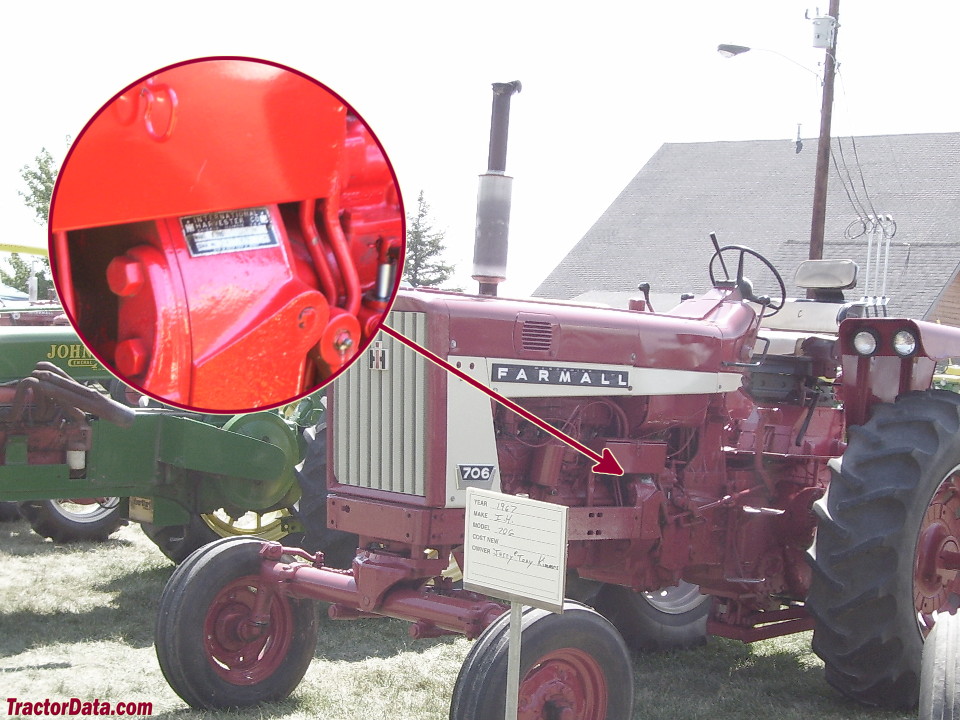

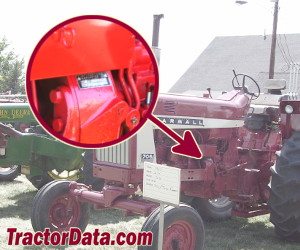

    Location:Tractor's clutch housing on left side
    photo of 706 serial number

    1963: 501 (IH)
    1964: 1251 (IH)
    1965: 3478 (IH)
    1966: 4789 (IH)
    1967: 5316 (IH)

    how to read serial numbers...


    International Harvester 706 Power:

    Drawbar (tested):67.46 hp [50.3 kW]
    PTO (tested):76.56 hp [57.1 kW]
    power test details ...


    Mechanical:

    Chassis:4x2 2WD
     4x4 MFWD 4WD (optional)
    Steering:hydrostatic power
    Brakes:hydraulic disc
    Cab:Cab optional, A/C available starting in 1966


    Hydraulics:

    Type:open center
    Capacity:17 gal [64.3 L]
    Valves:1 or 2
    Pump flow:12 gpm [45.4 lpm]
     17 gpm [64.3 lpm] (optional)
    Total flow:24 gpm [90.8 lpm]
    Steering flow:9 gpm [34.1 lpm]


    Belt Pulley:

    Diameter:11 inches [27 cm]
    Width:7.5 inches [19 cm]
    RPMs:1055
    Speed:3,038 ft/min [925.98 meters/min]


    Electrical:

    Ground:negative
    Charging amps:25 (generator)
     32 (alternator)


    Battery:

    Number:1 (gas)
     2 (diesel)
    Volts:12 (gas)
     6 (diesel)
