    International Harvester 706 - engine

    International Harvester 706 tractor photo
    1963 - 1967
    Standard-tread tractor
    Next model:International Harvester 756
    Larger:International Harvester 806
    more International Harvester 706 specifications...






    Engine Detail:

    The 282 was the original diesel available for the 706. It was later replaced by the German-built 310 diesel.
     International Harvester D282
     diesel
     6-cylinder
     liquid-cooled
     282 ci [4.6 L]
    Bore/Stroke:3.6875x4.3906 inches [94 x 112 mm]
    Rated RPM:2300
    Firing order:1-5-3-6-2-4
    Oil capacity:9 qts [8.5 L]
    Coolant capacity:21.5 qts [20.3 L]
    Intake valve clearance:0.027 inches [0.686 mm] (hot)
    Exhaust valve clearance:0.027 inches [0.686 mm] (hot)

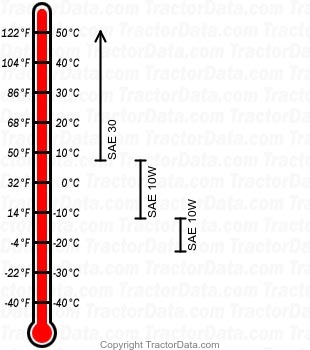

    706 diesel engine oil chart


    Engine Detail:

    The 310 replaced the 282 diesel in November 1966, serial number 37237.
     International Harvester D310
     diesel
     6-cylinder
     liquid-cooled
     310 ci [5.1 L]
    Bore/Stroke:3.875x4.375 inches [98 x 111 mm]
    Rated RPM:2300


    Engine Detail:

    The 263 was also available as an LP gas engine.
     International Harvester C263
     gasoline
     6-cylinder
     liquid-cooled
     263 ci [4.3 L]
    Bore/Stroke:3.5625x4.3906 inches [90 x 112 mm]
    Rated RPM:2300
    Oil capacity:9 qts [8.5 L]
    Coolant capacity:20.5 qts [19.4 L] (gas)
     21 qts [19.9 L] (LP gas)
    Sparkplug gap:0.023 inches [0.584 mm] (gas)
     0.015 inches [0.381 mm] (LP)
    Point gap:0.020 inches [0.508 mm]
    Intake valve clearance:0.027 inches [0.686 mm] (hot)
    Exhaust valve clearance:0.027 inches [0.686 mm] (hot)

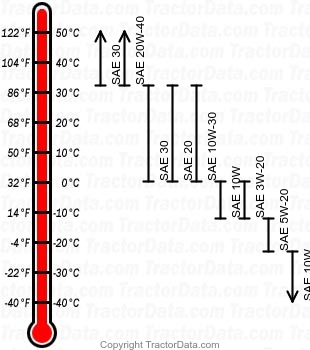

    706 gasoline engine oil chart


    Engine Detail:

    The 291 was also available as an LP gas engine.
     Interntional Harvester C291
     gasoline
     6-cylinder
     liquid-cooled
     291 ci [4.8 L]
    Bore/Stroke:3.75x4.39 inches [95 x 112 mm]
    Compression:7.5:1
    Rated RPM:2300
