    International Harvester 686 - transmission

    International Harvester 686 tractor photo
    I&T Manual: IH 544, 656, 666, 686, 684, 784, 884, 1466, 1468, 1486, 1568, 1586, Hydro 70, 84, 86, 100, 186
    I&T Shop Manual for the
    International Harvester 686
    Production years:1976 - 1980
    Tractor type:Farm/Agricultural tractor
    more International Harvester 686 specifications...






    Transmission:

    Transmission:Torque Amplifier
    Forward:10
    Reverse:2
    Oil capacity:64 qts [60.6 L]

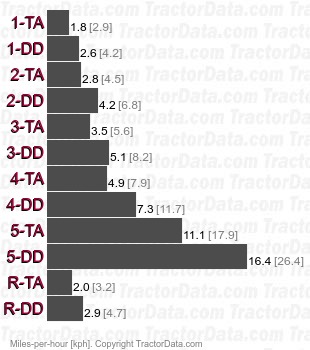

    Speeds:With 15.5-38 rear tires.

    Gear
    1-TA1.8mph [2.9kph]
    1-DD2.6mph [4.2kph]
    2-TA2.8mph [4.5kph]
    2-DD4.2mph [6.8kph]
    3-TA3.5mph [5.6kph]
    3-DD5.1mph [8.2kph]
    4-TA4.9mph [7.9kph]
    4-DD7.3mph [11.7kph]
    5-TA11.1mph [17.9kph]
    5-DD16.4mph [26.4kph]
    R-TA2.0mph [3.2kph]
    R-DD2.9mph [4.7kph]
