Tractors > International Harvester > 660
      -Brand search:


    International Harvester 660 - transmission

    International Harvester 660 tractor photo
    I&T Manual: IH 460, 560, 606, 660, 2606
    I&T Shop Manual for the
    International Harvester 660
    Production years:1959 - 1963
    Tractor type:Farm/Agricultural tractor
    more International Harvester 660 specifications...






    Transmission:

    Transmission:sliding gear
    Forward:5
    Reverse:1
    Oil capacity:64 qts [60.6 L]
    Speeds:With 18.4/15-34 rear tires.

    Gear2400 rpm
    12.15mph [3.5kph]
    23.81mph [6.1kph]
    35.33mph [8.6kph]
    47.41mph [11.9kph]
    516.51mph [26.6kph]
    R2.80mph [4.5kph]



    Transmission:

    Transmission:Torque Amplifier
    Forward:10
    Reverse:2
    Oil capacity:64 qts [60.6 L]
    Comments:The Torque Amplifier (TA) provides a clutchless shift-on-the-move between direct drive (DD) and the lower TA speed.

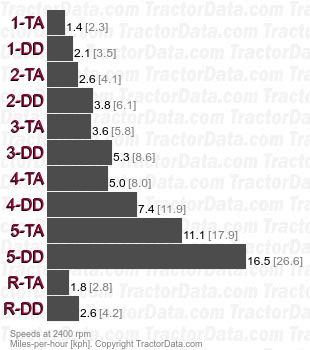

    Speeds:With 18.4/15-34 rear tires.

    Gear2400 rpm
    1-TA1.45mph [2.3kph]
    1-DD2.15mph [3.5kph]
    2-TA2.57mph [4.1kph]
    2-DD3.81mph [6.1kph]
    3-TA3.60mph [5.8kph]
    3-DD5.33mph [8.6kph]
    4-TA5.00mph [8.0kph]
    4-DD7.41mph [11.9kph]
    5-TA11.14mph [17.9kph]
    5-DD16.51mph [26.6kph]
    R-TA
    R-DD
