International Harvester 656 Transmission


International Harvester 656 tractor photo
1965 - 1973
Utility tractor
Series map:
656
756
70.9hp*
84.4hp*
*Estimated engine power for comparison only.
Transmissions overview
5-speed sliding gear
10-speed two-speed power shift
hydrostatic
Transmission
Typesliding gear
Gears5 forward and 1 reverse
Clutch279.4mm cerametallic disc
Transmission
TransmissionTorque Amplifier
Typetwo-speed power shift
Gears10 forward and 2 reverse
Speeds
With 16.9-30 rear tires.

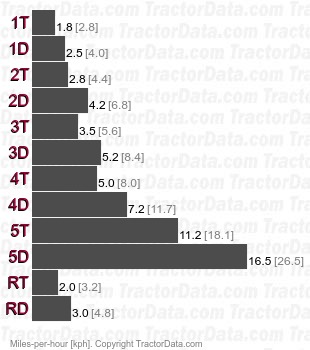

656 Torque Amplifier two-speed power shift speeds
Transmission
Typehydrostatic
Gearsinfinite forward and reverse (2-range)
Speeds

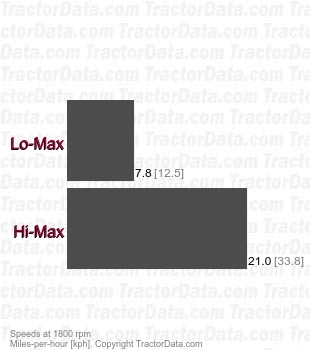

656  hydrostatic speeds
