    International Harvester 606 - transmission

    International Harvester 606 tractor photo
    I&T Manual: IH 460, 560, 606, 660, 2606
    I&T Shop Manual for the
    International Harvester 606
    Production years:1962 - 1967
    Tractor type:Farm/Agricultural tractor
    Smaller:International Harvester 504
    more International Harvester 606 specifications...






    Transmission:

    Transmission:Torque Amplifier
    Forward:10
    Reverse:2
    Oil capacity:52 qts [49.2 L]
    Comments:Five forward and one reverse gear plus Torque Amplifier (TA). The TA provides a powershift from direct drive (DD) to the lower TA speed. High-speed option provides 40% faster first gear.

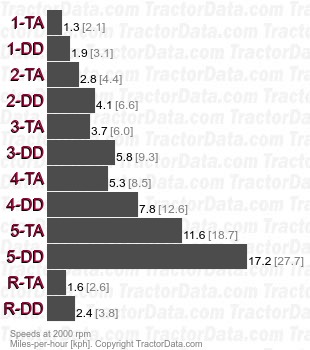

    Speeds:With 14.9-28 rear tires.

    Gear2000 rpm
    1-TA1.29mph [2.1kph]
    1-DD1.92mph [3.1kph]
    2-TA2.76mph [4.4kph]
    2-DD4.09mph [6.6kph]
    3-TA3.72mph [6.0kph]
    3-DD5.81mph [9.3kph]
    4-TA5.27mph [8.5kph]
    4-DD7.81mph [12.6kph]
    5-TA11.63mph [18.7kph]
    5-DD17.24mph [27.7kph]
    R-TA1.60mph [2.6kph]
    R-DD2.37mph [3.8kph]



    Transmission:

    Transmission:Fast Reverser
    Forward:5
    Reverse:5
    Oil capacity:52 qts [49.2 L]
    Comments:Five gears with reverser. High speed option provides 40% faster first gear.

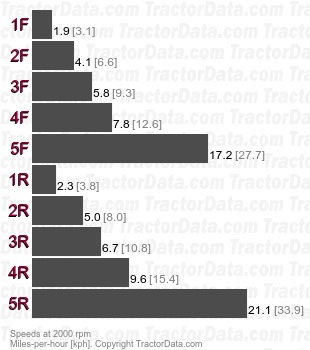

    Speeds:With 14.9-28 rear tires.

    Gear2000 rpm
    1F1.92mph [3.1kph]
    2F4.09mph [6.6kph]
    3F5.81mph [9.3kph]
    4F7.81mph [12.6kph]
    5F17.24mph [27.7kph]
    1R2.34mph [3.8kph]
    2R5.00mph [8.0kph]
    3R6.74mph [10.8kph]
    4R9.55mph [15.4kph]
    5R21.07mph [33.9kph]
