Tractors > International Harvester > 606

International Harvester 606 Tests



International Harvester 606 tractor photo
1962 - 1967
Utility tractor
Series map:
504
606
51.1hp*
55.6hp*
*Estimated engine power for comparison only.
Tractor Tests
NTTL 825: gasoline Torque Amplifier 2WD
NTTL 826: diesel Torque Amplifier 2WD
Nebraska Tractor Test 825

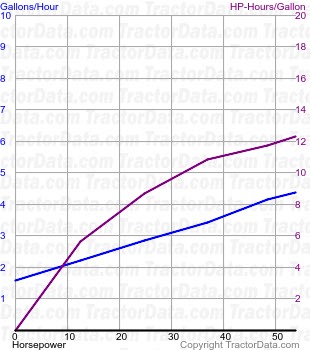

606 fuel use from test 825
Nebraska Tractor Test 825
Gasoline Torque Amplifier 2WD
September 26 - October 9, 1962
Link: Nebraska Tractor Test 825 file
PTO performance
Power at rated engine speed53.8 hp
40.1 kW
Fuel use4.4 gal/hour
16.7 l/hour
Drawbar performance
Max power45.68 hp
34.1 kW
Fuel use4.4 gal/hour
16.7 l/hour
Gear 3-Direct used for power test.
Max pull6621 lbs
3003 kg
Gear 1-Direct used for pull test.
Nebraska Tractor Test 826

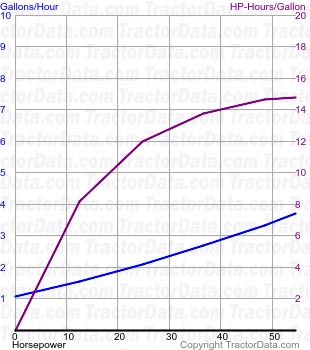

606 fuel use from test 826
Nebraska Tractor Test 826
Diesel Torque Amplifier 2WD
September 27 - October 9, 1962
Link: Nebraska Tractor Test 826 file
PTO performance
Power at rated engine speed54.31 hp
40.5 kW
Fuel use3.7 gal/hour
14.0 l/hour
Drawbar performance
Max power46.71 hp
34.8 kW
Fuel use3.7 gal/hour
14.0 l/hour
Gear 3-Direct used for power test.
Max pull6768 lbs
3069 kg
Gear 1-Direct used for pull test.
