Tractors > International Harvester > 584
      -Brand search:


    International Harvester 584 - transmission

    International Harvester 584 tractor photo
     I&T Manual: IH 766, 826, 966, 1026, 1066, 454, 464, 484, 574, 584, 674, 786, 886, 986, 1086
    I&T Shop Manual for the
    International Harvester 584
    Production years:1977 - 1984
    Tractor type:Farm/Agricultural tractor
    Larger:International Harvester 684
    Smaller:International Harvester 484
    more International Harvester 584 specifications...






    Transmission:

    Transmission:syncromesh
    Forward:8
    Reverse:4
    Oil capacity:36 qts [34.1 L]

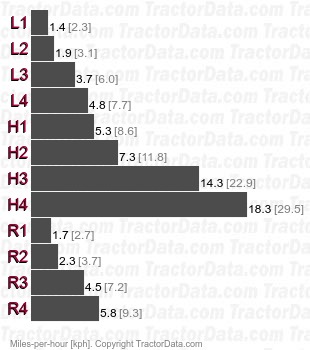

    Speeds:With 16.9-30 rear tires.

    Gear
    L11.40mph [2.3kph]
    L21.92mph [3.1kph]
    L33.73mph [6.0kph]
    L44.79mph [7.7kph]
    H15.35mph [8.6kph]
    H27.35mph [11.8kph]
    H314.26mph [22.9kph]
    H418.34mph [29.5kph]
    R11.67mph [2.7kph]
    R22.30mph [3.7kph]
    R34.46mph [7.2kph]
    R45.75mph [9.3kph]
