    International Harvester 544 - transmission

    No photo available
    I&T Manual: IH 544, 656, 666, 686, 684, 784, 884, 1466, 1468, 1486, 1568, 1586, Hydro 70, 84, 86, 100, 186
    I&T Shop Manual for the
    International Harvester 544
    Production years:1968 - 1973
    Tractor type:Farm/Agricultural tractor
    more International Harvester 544 specifications...






    Transmission:

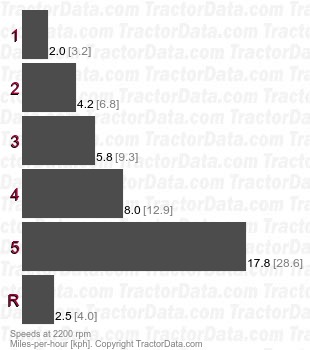

    Transmission:sliding gear
    Forward:5
    Reverse:1
    Oil capacity:-unknown-
    Speeds:
    Gear2200 rpm
    12mph [3.2kph]
    24.25mph [6.8kph]
    35.75mph [9.3kph]
    48mph [12.9kph]
    517.75mph [28.6kph]
    R2.5mph [4.0kph]



    Transmission:

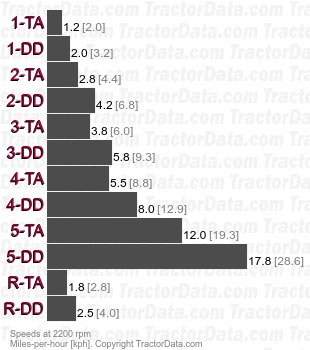

    Transmission:Torque Amplifier
    Forward:10
    Reverse:2
    Oil capacity:-unknown-
    Speeds:
    Gear2200 rpm
    1-TA1.25mph [2.0kph]
    1-DD2mph [3.2kph]
    2-TA2.75mph [4.4kph]
    2-DD4.25mph [6.8kph]
    3-TA3.75mph [6.0kph]
    3-DD5.75mph [9.3kph]
    4-TA5.5mph [8.8kph]
    4-DD8mph [12.9kph]
    5-TA12mph [19.3kph]
    5-DD17.75mph [28.6kph]
    R-TA1.75mph [2.8kph]
    R-DD2.5mph [4.0kph]



    Transmission:

    Transmission:hydrostatic
    Forward:infinite
    Reverse:infinite
    Oil capacity:-unknown-

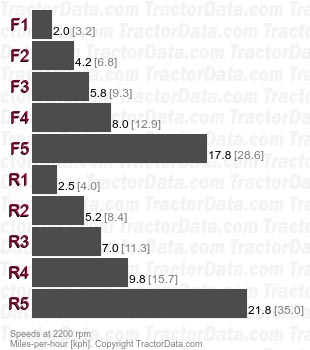

    Transmission:

    Forward:5
    Reverse:5
    Oil capacity:-unknown-
    Speeds:
    Gear2200 rpm
    F12mph [3.2kph]
    F24.25mph [6.8kph]
    F35.75mph [9.3kph]
    F48mph [12.9kph]
    F517.75mph [28.6kph]
    R12.5mph [4.0kph]
    R25.25mph [8.4kph]
    R37mph [11.3kph]
    R49.75mph [15.7kph]
    R521.75mph [35.0kph]
