    International Harvester 464 - transmission

    International Harvester 464 tractor photo
    I&T Manual: IH 766, 826, 966, 1026, 1066, 454, 464, 484, 574, 584, 674, 786, 886, 986, 1086
    I&T Shop Manual for the
    International Harvester 464
    Production years:1973 - 1978
    Tractor type:Farm/Agricultural tractor
    more International Harvester 464 specifications...






    Transmission:

    Transmission:Synchromesh
    Forward:8
    Reverse:4
    Oil capacity:36 qts [34.1 L]

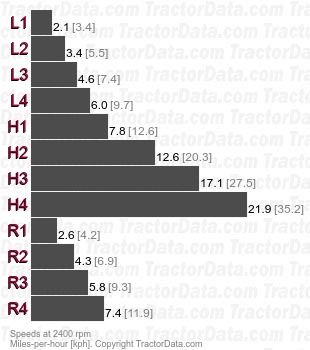

    Speeds:With 13.6-28 rear tires.

    Gear2400 rpm
    L12.1mph [3.4kph]
    L23.4mph [5.5kph]
    L34.6mph [7.4kph]
    L46.0mph [9.7kph]
    H17.8mph [12.6kph]
    H212.6mph [20.3kph]
    H317.1mph [27.5kph]
    H421.9mph [35.2kph]
    R12.6mph [4.2kph]
    R24.3mph [6.9kph]
    R35.8mph [9.3kph]
    R47.4mph [11.9kph]
