    International Harvester 460 - transmission

    No photo available
     I&T Manual: IH 460, 560, 606, 660, 2606
    I&T Shop Manual for the
    International Harvester 460
    Production years:1958 - 1963
    Tractor type:Farm/Agricultural tractor
    more International Harvester 460 specifications...






    Transmission:

    Transmission:sliding gear
    Forward:5
    Reverse:1
    Oil capacity:40 qts [37.9 L]

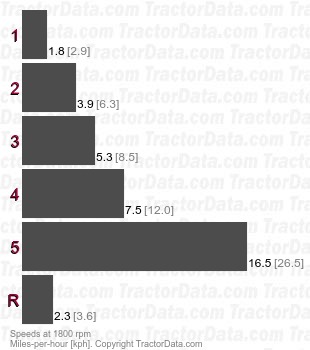

    Speeds:With 12-28 rear tires.

    Gear1800 rpm
    11.83mph [2.9kph]
    23.91mph [6.3kph]
    35.31mph [8.5kph]
    47.47mph [12.0kph]
    516.47mph [26.5kph]
    R2.26mph [3.6kph]



    Transmission:

    Transmission:Torque Amplifier
    Forward:10
    Reverse:2
    Oil capacity:40 qts [37.9 L]
    Comments:The Torque Amplifier (TA) provides a clutchless powershift between direct drive (DD) and the lower TA speed.

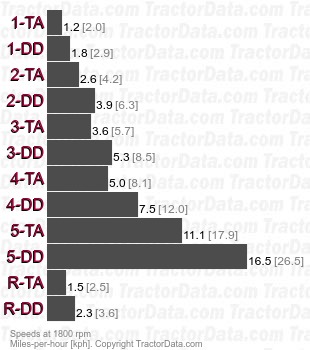

    Speeds:With 12-28 rear tires.

    Gear1800 rpm
    1-TA1.24mph [2.0kph]
    1-DD1.83mph [2.9kph]
    2-TA2.64mph [4.2kph]
    2-DD3.91mph [6.3kph]
    3-TA3.56mph [5.7kph]
    3-DD5.31mph [8.5kph]
    4-TA5.04mph [8.1kph]
    4-DD7.47mph [12.0kph]
    5-TA11.12mph [17.9kph]
    5-DD16.47mph [26.5kph]
    R-TA1.53mph [2.5kph]
    R-DD2.26mph [3.6kph]



    Transmission:

    Transmission:Fast Reverse
    Forward:5
    Reverse:5
    Oil capacity:40 qts [37.9 L]
    Comments:Hand reverser allows change of direction without shifting gears.
    Speeds:With 12-28 rear tires.

    Gear1800 rpm
    F11.83mph [2.9kph]
    F23.91mph [6.3kph]
    F35.31mph [8.5kph]
    F47.47mph [12.0kph]
    F516.47mph [26.5kph]
    R12.24mph [3.6kph]
    R24.79mph [7.7kph]
    R36.50mph [10.5kph]
    R49.15mph [14.7kph]
    R520.18mph [32.5kph]
