    International Harvester 460 - engine

    No photo available
     I&T Manual: IH 460, 560, 606, 660, 2606
    I&T Shop Manual for the
    International Harvester 460
    Production years:1958 - 1963
    Tractor type:Farm/Agricultural tractor
    more International Harvester 460 specifications...






    Engine:

    Manufacturer:International Harvester
    Model:C-221
    Fuel:gasoline
    Cylinders:6
    Valves:-unknown-
    Bore/Stroke:3.5625x3.6875 inches [90 x 94 mm]
    Displacement:221 ci [3.6 L]
    Horsepower:61 hp [45.5 kW]
    Cooling:liquid
    Coolant:20.5 qts [19.4 L]
    Air cleaner:oil bath
    Compression:7.2:1
    Rated RPMs:1800
    Torque:180 lb-ft [244.1 Nm]
    Torque RPMs:1300
    Starter type:-unknown-
    Oil capacity:9 qts [8.5 L]


    Engine:

    Manufacturer:International Harvester
    Model:D-236
    Fuel:diesel
    Cylinders:6
    Valves:-unknown-
    Bore/Stroke:3.6875x3.6875 inches [94 x 94 mm]
    Displacement:236 ci [3.9 L]
    Horsepower:61 hp [45.5 kW]
    Cooling:liquid
    Coolant:23 qts [21.8 L]
    Air cleaner:oil bath
    Compression:-unknown-
    Rated RPMs:1800
    Torque:180 lb-ft [244.1 Nm]
    Torque RPMs:1400
    Starter type:-unknown-
    Oil capacity:9 qts [8.5 L]

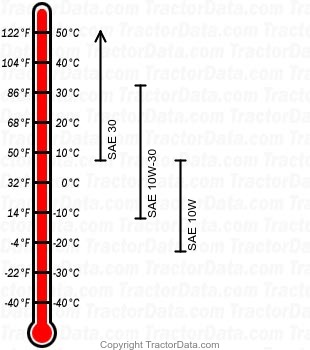

    Oil type:
    45oF [7oC] : SAE30
    10o↔90oF [-12o↔32oC]   : SAE10W-30
    -10o↔45oF [-23o↔7oC]   : SAE10W



    Engine:

    Manufacturer:International Harvester
    Model:C-221
    Fuel:LP gas
    Cylinders:6
    Valves:-unknown-
    Bore/Stroke:3.5625x3.6875 inches [90 x 94 mm]
    Displacement:221 ci [3.6 L]
    Horsepower:61 hp [45.5 kW]
    Cooling:liquid
    Coolant:20.8 qts [19.7 L]
    Air cleaner:oil bath
    Compression:8.75:1
    Rated RPMs:1800
    Torque:180 lb-ft [244.1 Nm]
    Torque RPMs:1300
    Starter type:-unknown-
    Oil capacity:9 qts [8.5 L]
